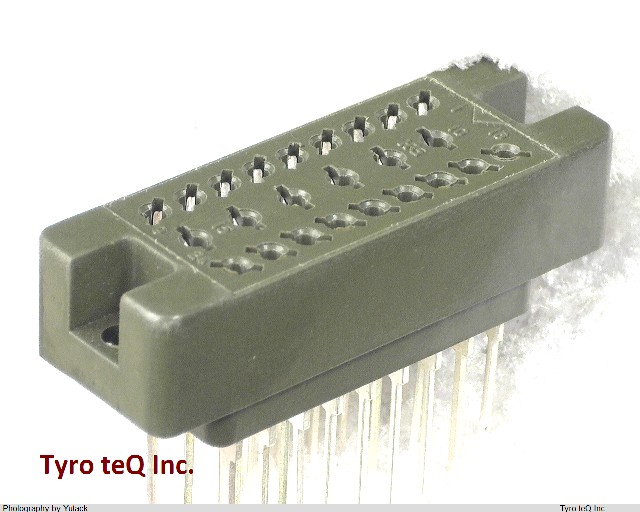

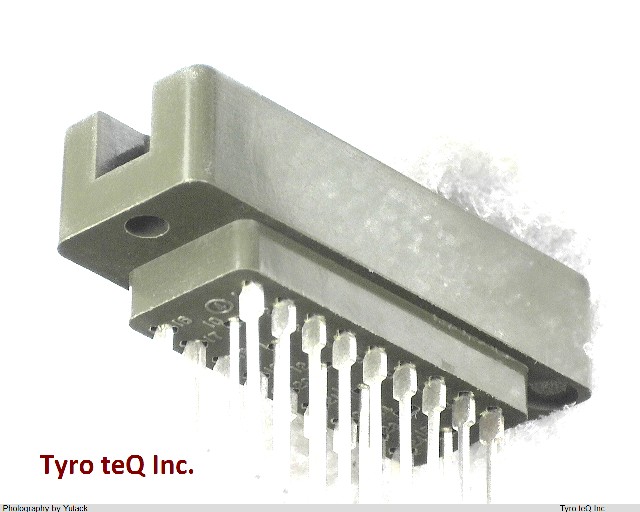

S-1324WB(09) データシート

Name: S-1324WB(09)
Brand: HIROSE
SKU: 290000721-0000-0000-0000

S-1324WB(09) - HIROSE の商品詳細ページです。

227時間2分後以内に見積もり依頼を頂ければ、
05月08日(水) 9:00 までに見積もり回答いたします。

検討リストに追加する

S-1324WB(09) の詳細情報

型番	S-1324WB(09)
メーカー	HIROSE
データシート
Board Mounting Option	HOLE .125-.137
Body Breadth	0.669 inch
Body Depth	0.709 inch
Body Length	1.89 inch
Body/Shell Style	SOCKET
Connector Type	RECTANGULAR CONNECTOR
Contact Finish - Mating	TIN
Contact Finish - Termination	TIN
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	5 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1200VAC V
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	GREEN
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	1300
Mating Contact Pitch	0.138 inch
Mating Contact Row Spacing	0.197 inch
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	3
Number of Rows Loaded	3
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	5.0038 mm
Polarization Key	HOUSING SIDE
Rated Current (Signal)	5 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.551 inch
Terminal Pitch	3.5052 mm
Termination Type	WIRE WRAP
Total Number of Contacts	24
