RM15TRD-10S データシート

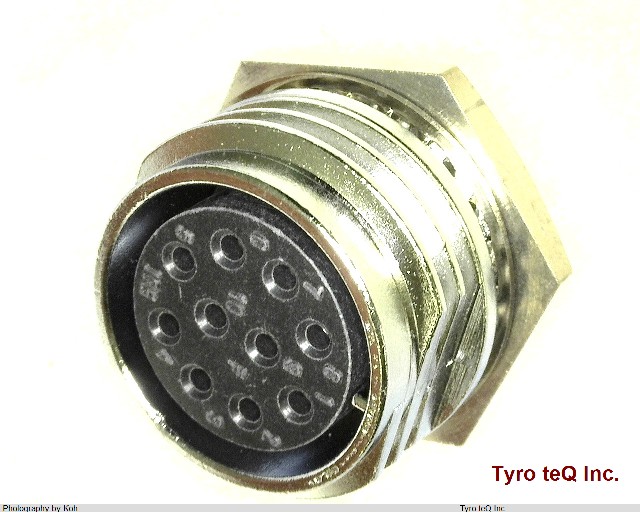

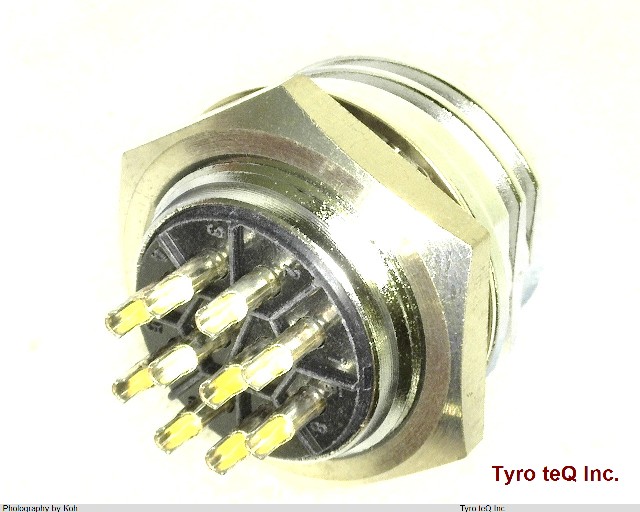

Name: RM15TRD-10S
Brand: HIROSE
SKU: 280196745-0000-0000-0000

RM15TRD-10S - HIROSE の商品詳細ページです。

No Image

２営業日以内に回答いたします

RM15TRD-10S の詳細情報

型番	RM15TRD-10S
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: RM-SC-112; RM-SC-122
Backshell Type	SOLID
Body Breadth	0.827 inch
Body Depth	0.354 inch
Body Diameter	0.673 inch
Body Length	0.953 inch
Body/Shell Style	RECEPTACLE
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	SILVER
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Resistance	4 mohm
Contact Style	RND PIN-SKT
Coupling Type	THREADED
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	2000 Cycles
Empty Shell	NO
Environmental Characteristics	MOSITURE RESISTANT
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	RM
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	THREADED
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	CHROME PLATED
Shell Material	BRASS/ZINC ALLOY
Shell Size	15
Sub Category	DIN Connectors
Terminal Length	0 inch
Termination Type	CRIMP
Total Number of Contacts	10
