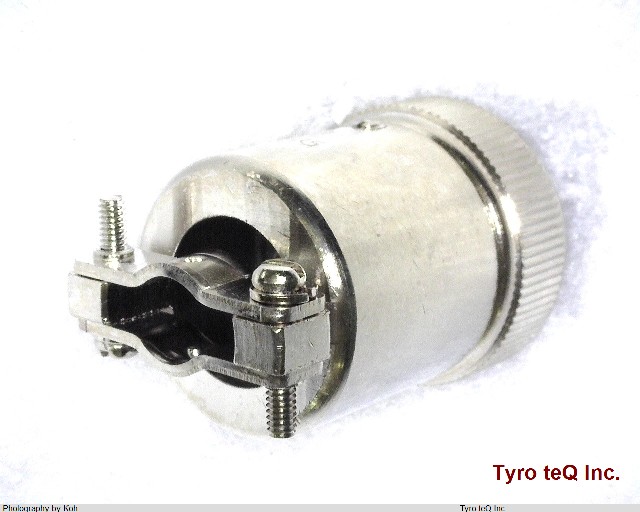

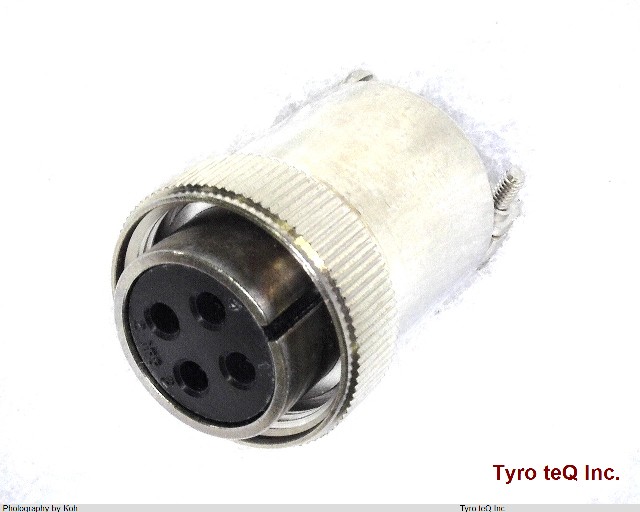

RM15TP-4SA データシート

Name: RM15TP-4SA
Brand: HIROSE
SKU: 280241327-0000-0000-0000

RM15TP-4SA - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

RM15TP-4SA の詳細情報

型番	RM15TP-4SA
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: RM-SC-112; RM-SC-122
Backshell Type	SOLID
Body Breadth	0.846 inch
Body Depth	1.339 inch
Body Diameter	0.846 inch
Body Length	0.846 inch
Body/Shell Style	PLUG
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	SILVER
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Resistance	2 mohm
Contact Style	RND PIN-SKT
Coupling Type	THREADED
DIN Conformance	NO
Dielectric Withstanding Voltage	1500VAC V
Empty Shell	NO
Environmental Characteristics	MOSITURE RESISTANT
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	RM
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING MECH
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	10 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Shell Size	15
Sub Category	DIN Connectors
Terminal Length	0 inch
Termination Type	SOLDER
Total Number of Contacts	4
