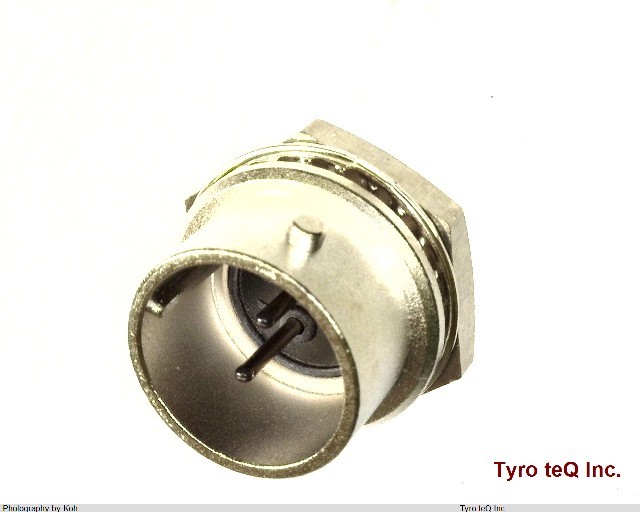

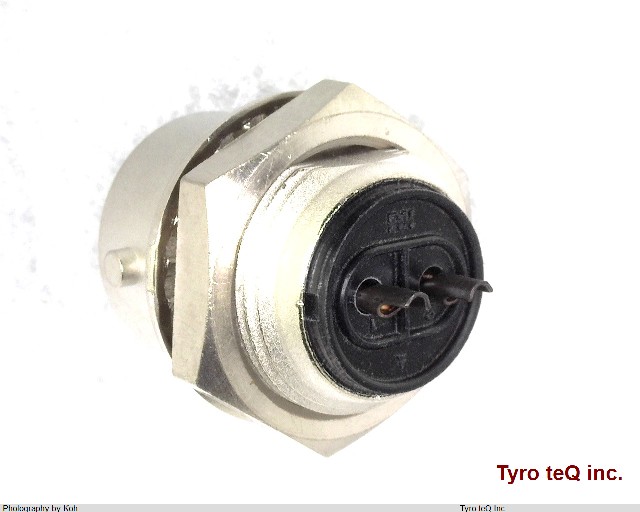

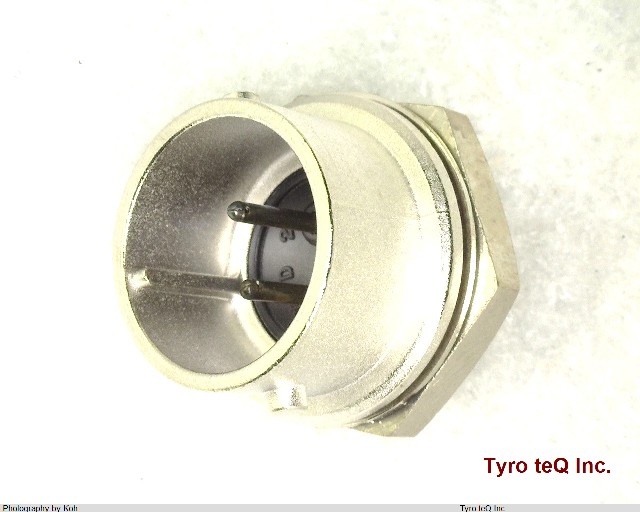

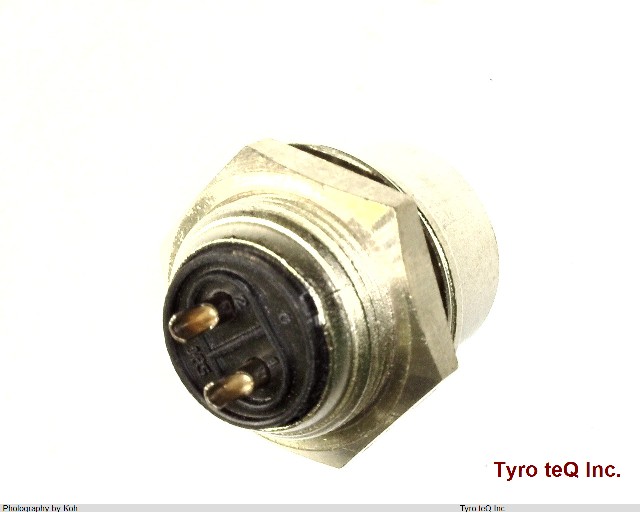

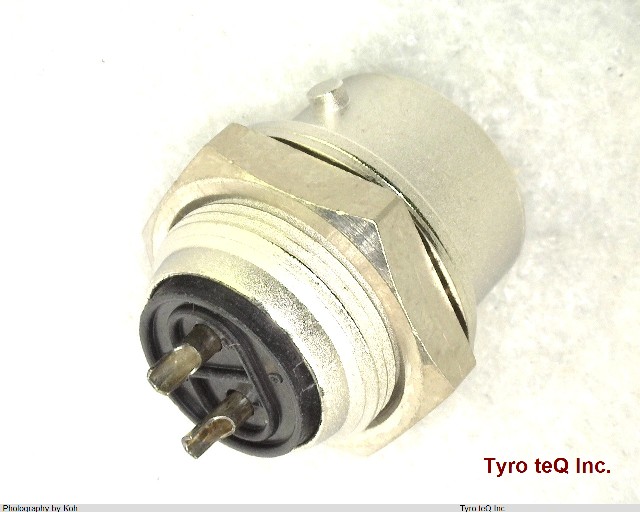

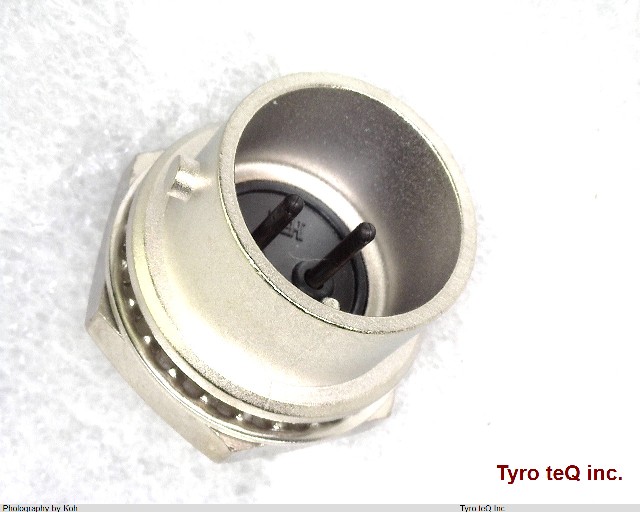

RM12BRD-2PH データシート

Name: RM12BRD-2PH
Brand: HIROSE
SKU: 280197588-0000-0000-0000

RM12BRD-2PH - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

RM12BRD-2PH の詳細情報

型番	RM12BRD-2PH
メーカー	HIROSE
データシート
Additional Feature	BAYONET SLEEVE TYPE
Backshell Type	SOLID
Body Breadth	0.669 inch
Body Depth	0.276 inch
Body Diameter	0.669 inch
Body Length	0.772 inch
Body/Shell Style	RECEPTACLE
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Silver (Ag)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	4 mohm
Contact Style	RND PIN-SKT
Coupling Type	BAYONET
DIN Conformance	NO
Dielectric Withstanding Voltage	1800VAC V
Durability	2000 Cycles
Empty Shell	NO
Environmental Characteristics	MOSITURE RESISTANT
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	RM
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Option 2	BAYONET
Mounting Style	STRAIGHT
Mounting Type	CABLE AND PANEL
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS/ZINC ALLOY
Shell Size	12
Sub Category	DIN Connectors
Terminal Length	0 inch
Termination Type	SOLDER
Total Number of Contacts	2
