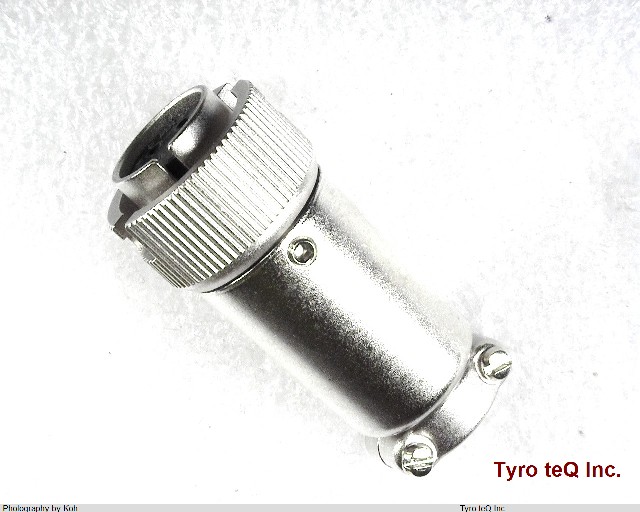

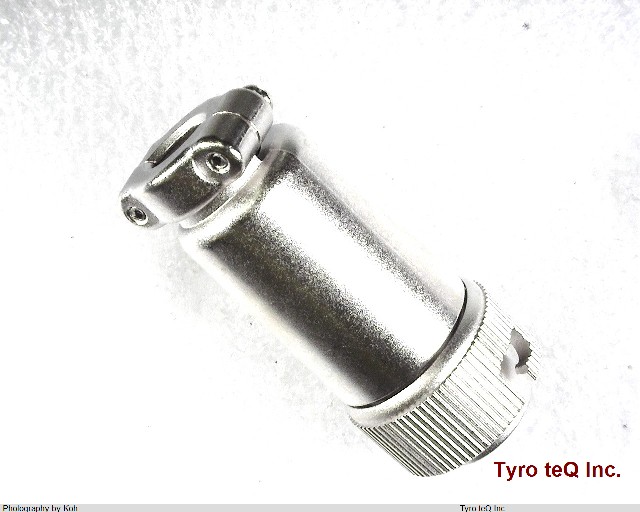

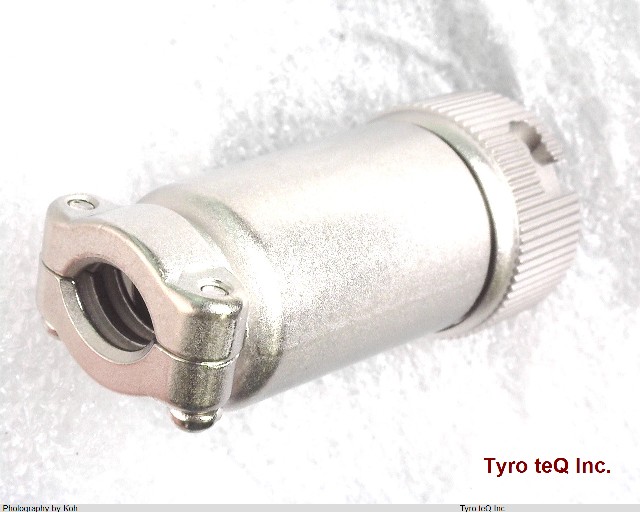

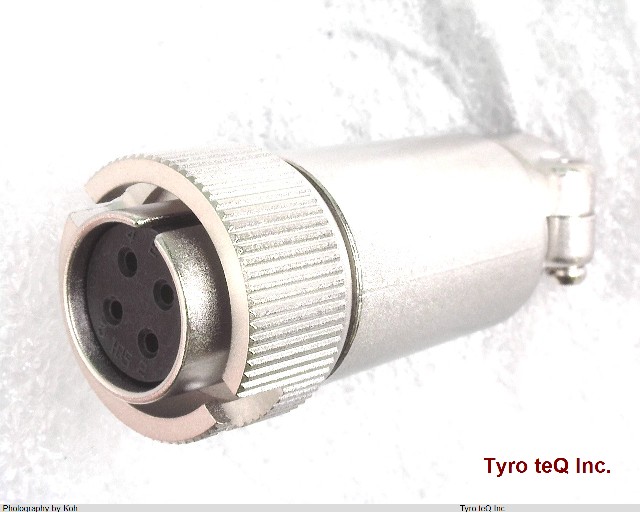

RM12BPE-4S データシート

Name: RM12BPE-4S
Brand: HIROSE
SKU: 280000060-0000-0000-0000

RM12BPE-4S - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

RM12BPE-4S の詳細情報

型番	RM12BPE-4S
メーカー	HIROSE
データシート
Backshell Type	SOLID
Body Depth	1.614 inch
Body Diameter	0.709 inch
Body/Shell Style	PLUG
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Silver (Ag)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Coupling Type	BAYONET
DIN Conformance	NO
Empty Shell	NO
Environmental Characteristics	MOSITURE RESISTANT
Filter Feature	NO
IEC Conformance	NO
Insulator Material	DIALLYL PHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	RM
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Reference Standard	UL
Shell Finish	NICKEL
Shell Material	BRASS/ZINC ALLOY
Shell Size	12
Termination Type	CLAMP
Total Number of Contacts	4
