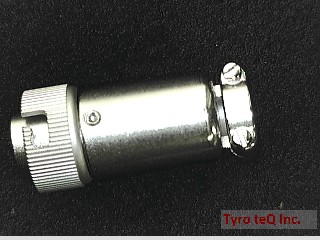

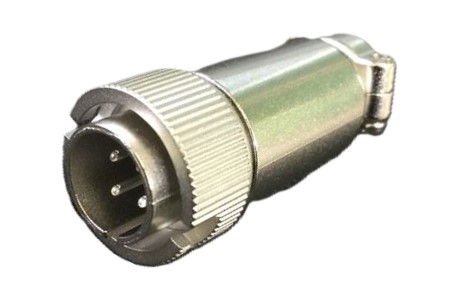

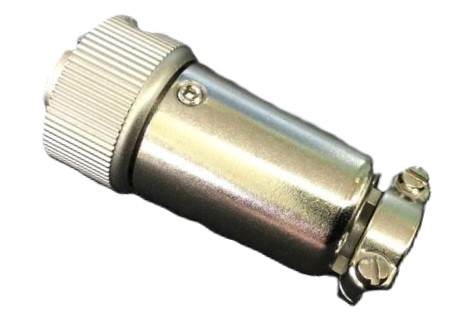

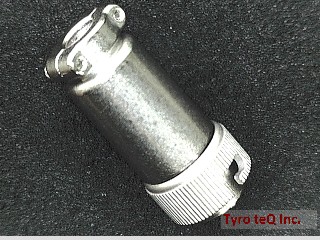

RM12BPE-4PH(71) データシート

Name: RM12BPE-4PH(71)
Brand: HIROSE
SKU: 280401463-0000-0000-0000

RM12BPE-4PH(71) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

RM12BPE-4PH(71) の詳細情報

型番	RM12BPE-4PH(71)
メーカー	HIROSE
データシート
Backshell Type	SOLID
Body Depth	1.614 inch
Body Diameter	0.709 inch
Body/Shell Style	PLUG
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Silver (Ag)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Coupling Type	BAYONET
DIN Conformance	NO
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Reference Standard	UL
Shell Finish	NICKEL PLATED
Shell Material	ZINC ALLOY AND BRASS
Shell Size	12
Termination Type	CLAMP
Total Number of Contacts	4
