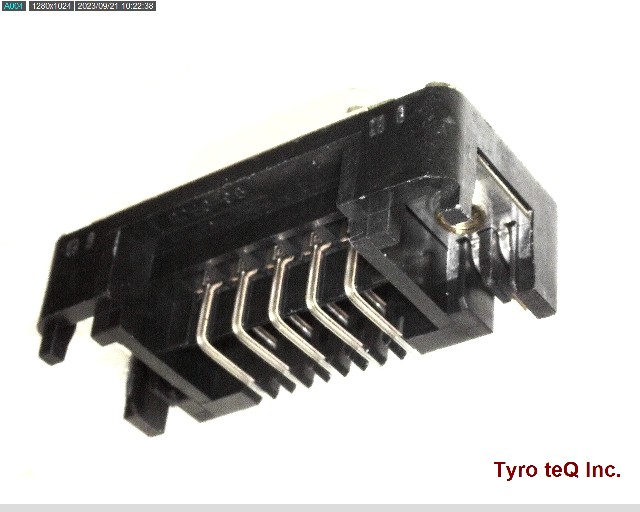

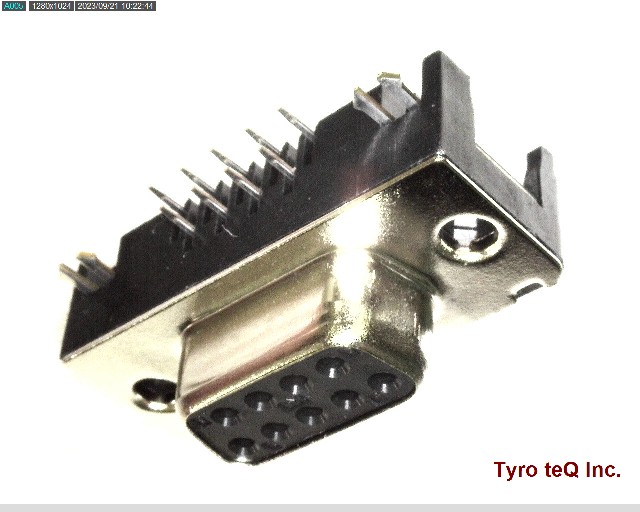

RDEG1-9SE1

Name: RDEG1-9SE1
Brand: HIROSE
SKU: 400067365-0000-0000-0000

RDEG1-9SE1 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

RDEG1-9SE1 の詳細情報

型番	RDEG1-9SE1
メーカー	HIROSE
Additional Feature	EMI SHIELDED, PANEL MOUNTABLE
Body Breadth	0.494 inch
Body Depth	0.335 inch
Body Length	1.213 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Resistance (mohm)	25
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1250VAC V
Dielectric Withstanding Voltage (V)	1750VAC
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulation Resistance (ohm)	5000
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Manufacturer Series	RDEG
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	HOLE .115-.125
Mounting Option 2	SCREW
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Contacts	9
Number of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Rated Current (Signal)	3 A
Rated Current (Signal) (A)	3
Reference Standard	UL
Reliability	COMMERCIAL
Screening Level / Reference Standard	UL
Shell Finish	NICKEL
Shell Material	COPPER ALLOY
Shell Size	1/E
Sub Category	D Type Connectors
Terminal Length	0.11 inch
Termination Type	SOLDER
