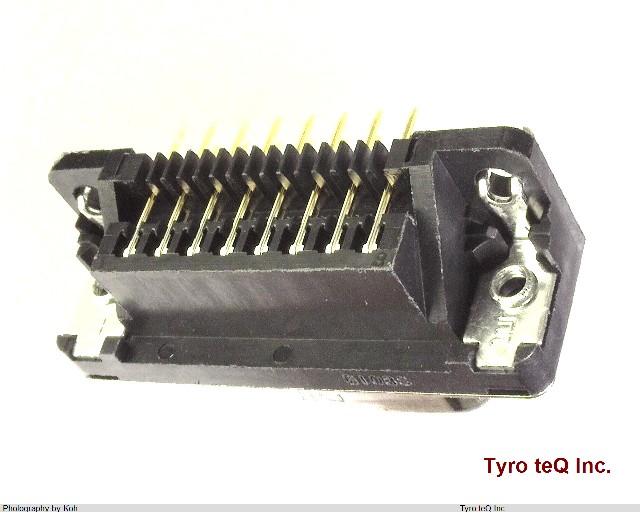

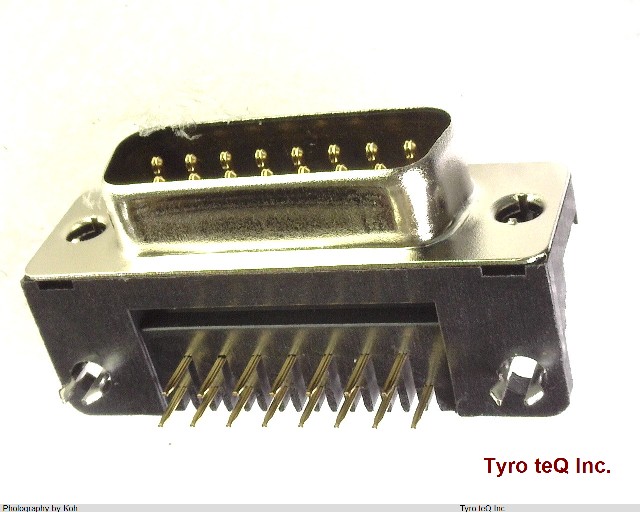

RDAD-15PE1/M2.6(55) データシート

Name: RDAD-15PE1/M2.6(55)
Brand: HIROSE
SKU: 280402017-0000-0000-0000

RDAD-15PE1/M2.6(55) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

シェルニッケルめっき

RDAD-15PE1/M2.6(55) の詳細情報

型番	RDAD-15PE1/M2.6(55)
メーカー	HIROSE
データシート
Body Breadth	0.494 inch
Body Depth	0.52 inch
Body Length	1.541 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1800VAC V
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mounting Option 1	M2.6
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.8448 mm
Plating Thickness	8u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.157 inch
Terminal Pitch	2.7432 mm
Termination Type	SOLDER
Total Number of Contacts	15
