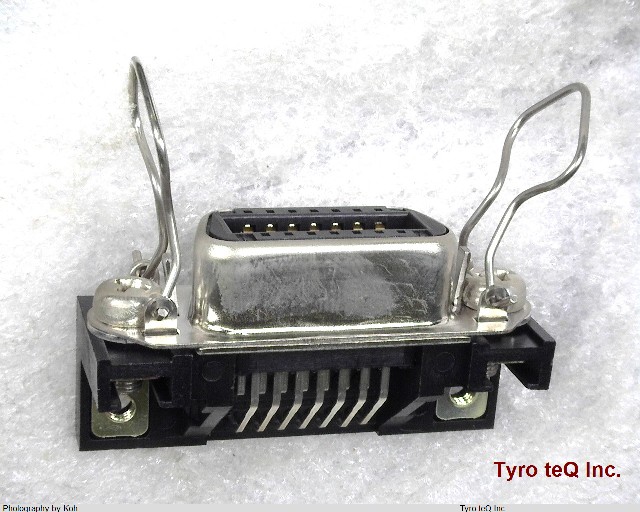

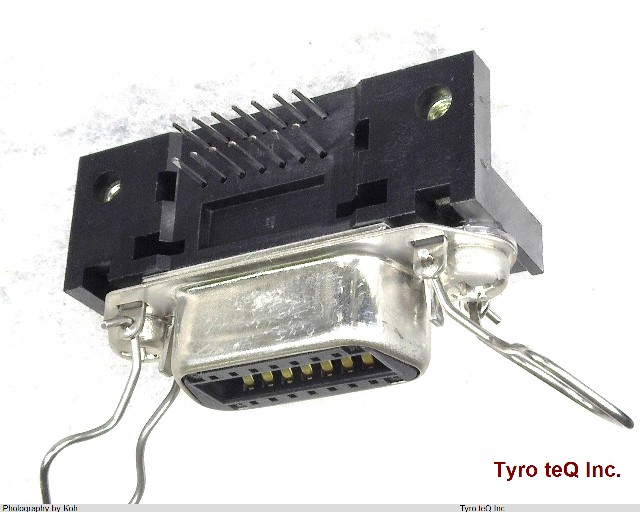

RC10-14R-LW データシート

Name: RC10-14R-LW
Brand: HIROSE
SKU: 280268928-0000-0000-0000

RC10-14R-LW - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

RC10-14R-LW の詳細情報

型番	RC10-14R-LW
メーカー	HIROSE
データシート
Additional Feature	PANEL MOUNT
Body Breadth	0.618 inch
Body Depth	0.646 inch
Body Length	1.732 inch
Body/Shell Style	RECEPTACLE
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	1200VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Manufacturer Series	RC
Mating Contact Pitch	0.085 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	BAIL MT M
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	4.2926 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	BRASS
Sub Category	D Type Connectors
Terminal Length	0.187 inch
Terminal Pitch	2.159 mm
Termination Type	SOLDER
Total Number of Contacts	14
UL Flammability Code	94V-0
