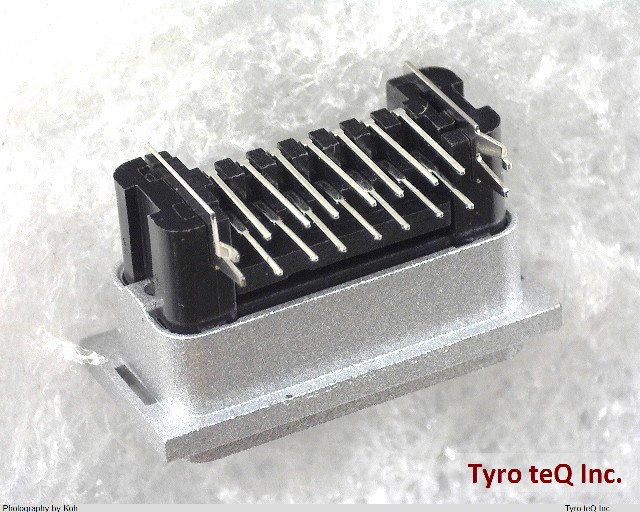

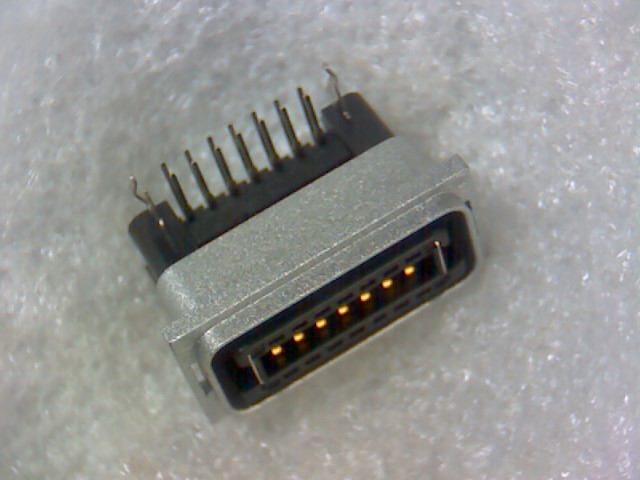

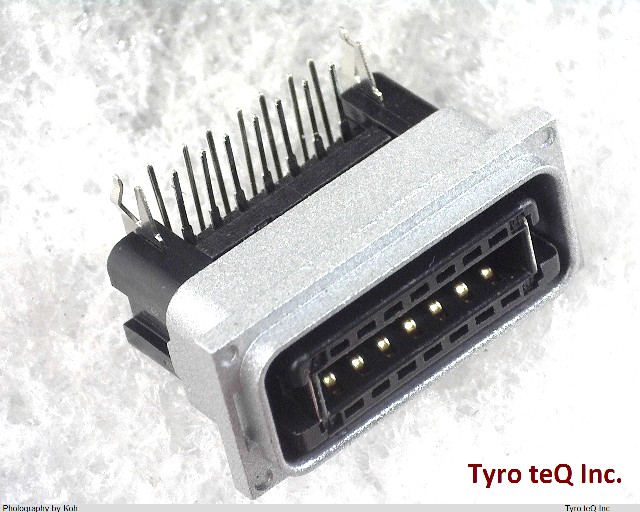

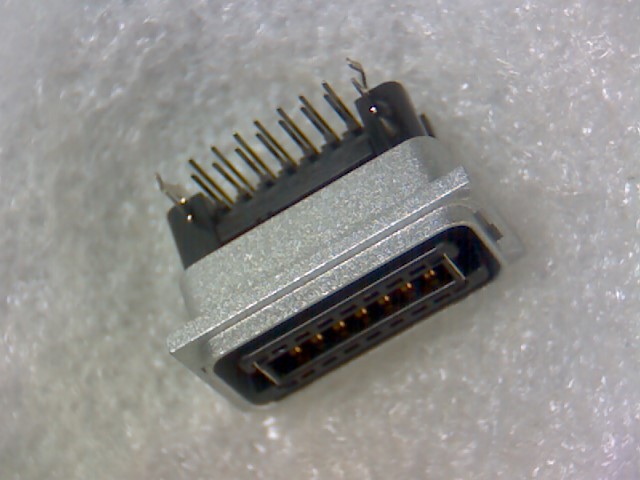

QM10-14R(L)-PR1(02) データシート

Name: QM10-14R(L)-PR1(02)
Brand: HIROSE
SKU: 270024602-0000-0000-0000

QM10-14R(L)-PR1(02) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

QM10-14R(L)-PR1(02) の詳細情報

型番	QM10-14R(L)-PR1(02)
メーカー	HIROSE
データシート
Additional Feature	EMI/RFI SHIELDED, HIGH DENSITY, LATCHED, PANEL MOUNT
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.417 inch
Body Depth	0.591 inch
Body Length	0.912 inch
Body/Shell Style	RECEPTACLE
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	300VDC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYETHYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.07 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Ports	1
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	1.778 mm
Rated Current (Signal)	0.5 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	1.778 mm
Termination Type	SOLDER
Total Number of Contacts	14
