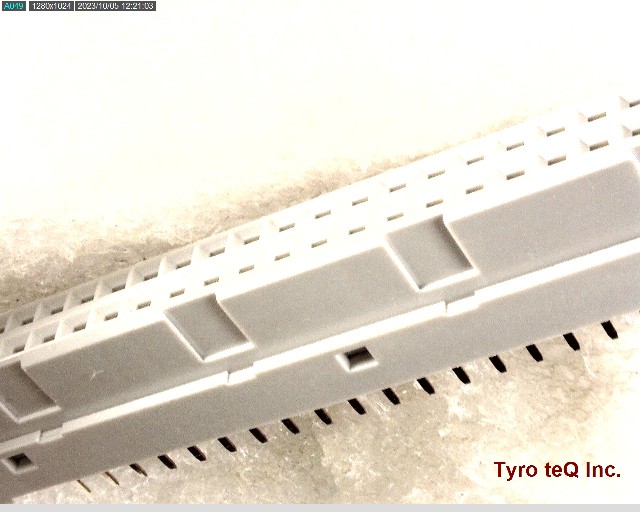

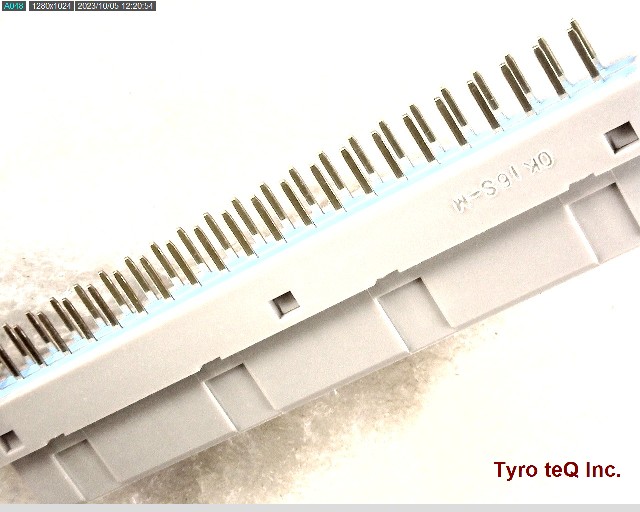

PCN10C-44S-2.54DS(72) データシート

Name: PCN10C-44S-2.54DS(72)
Brand: HIROSE
SKU: 260227762-0000-0000-0000

PCN10C-44S-2.54DS(72) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

PCN10C-44S-2.54DS(72) の詳細情報

型番	PCN10C-44S-2.54DS(72)
メーカー	HIROSE
種別	コネクタ
データシート
Body Breadth	0.318 inch
Body Depth	0.598 inch
Body Length	2.896 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD EURO CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	TIN OVER NICKEL
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	YES
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Insulation Resistance	1000000000000 ohm
Insulator Color	GRAY
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Manufacturer Series	PCN10
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Name of Rows Loaded	A,B
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	8u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.114 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	44
