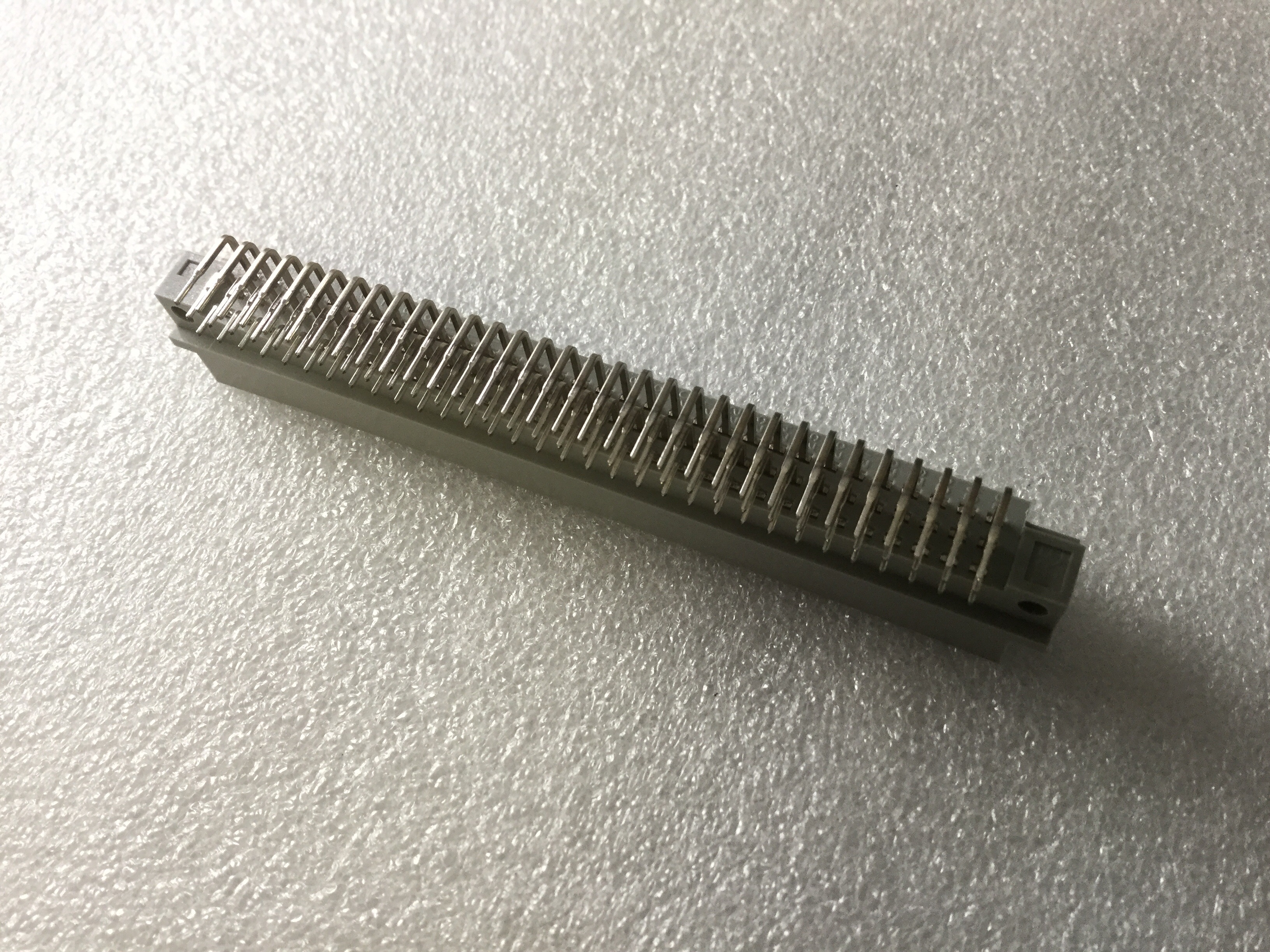

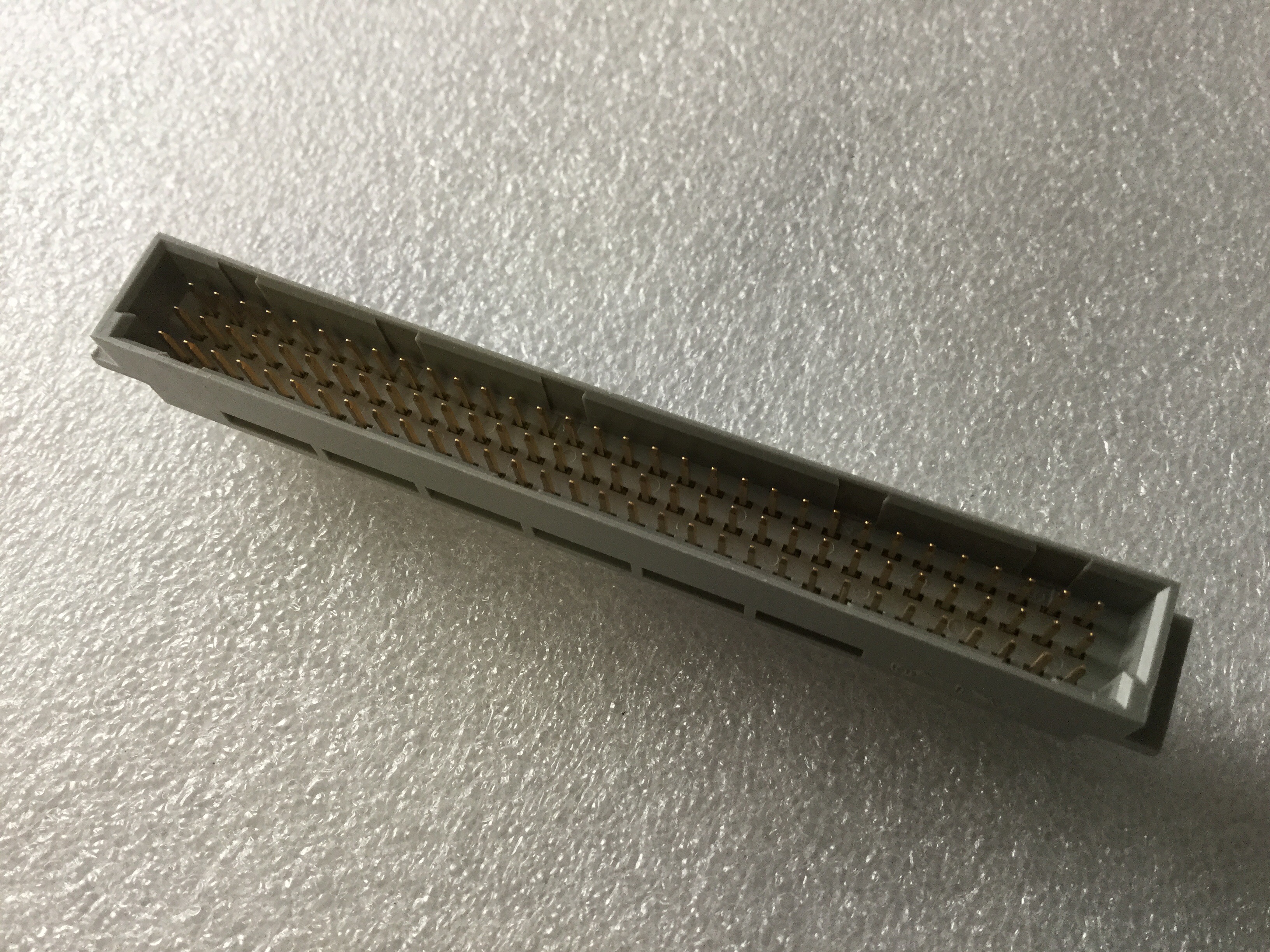

PCN10-96P-2.54DS(72) データシート

Name: PCN10-96P-2.54DS(72)
Brand: HIROSE
SKU: 260227736-0000-0000-0000

PCN10-96P-2.54DS(72) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

PCN10-96P-2.54DS(72) の詳細情報

型番	PCN10-96P-2.54DS(72)
メーカー	HIROSE
種別	コネクタ
データシート
Additional Feature	STANDARDS: DIN 41612; IEC 603-2
Body Breadth	0.433 inch
Body Depth	0.5 inch
Body Length	3.7 inch
Body/Shell Style	PLUG
Connector Type	BOARD EURO CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	YES
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	YES
Insulation Resistance	1000000000000 ohm
Insulator Color	GRAY
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Name of Rows Loaded	A,B,C
Number Of PCB Rows	3
Number of Rows Loaded	3
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	8u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.114 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	96
UL Flammability Code	94V-0
