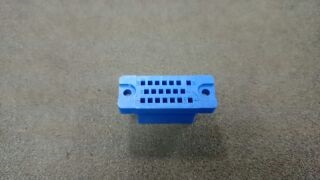

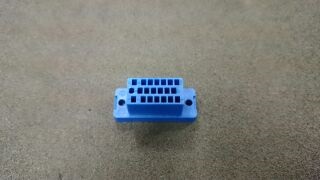

PC-1620 データシート

Name: PC-1620
Brand: HIROSE
SKU: 260231825-0000-0000-0000

PC-1620 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

PC-1620 の詳細情報

型番	PC-1620
メーカー	HIROSE
データシート
Body Breadth	0.512 inch
Body Depth	0.591 inch
Body Length	1.299 inch
Connector Type	RECTANGULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	STAGGERED
Contact Resistance	7 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLUE
Insulator Material	GLASS FILLED DIALLYL PHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mfr Name	HIROSE ELECTRIC CO LTD
Mfr P/N	PC-1620(10)
Mounting Option 1	LOCKING
New Category	Headers and Edge Type Connectors
New Part Type	CONNECTORS
Number of Rows Loaded	3
Old Category	Other Rectangular Connectors
Old Part Type	CONNECTORS
Option	GENERAL PURPOSE
Part Objectid	145117813347
Rated Current (Signal)	3 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Total Number of Contacts	20
Wire Size-Max	26 AWG
Wire Size-Min	30 AWG
