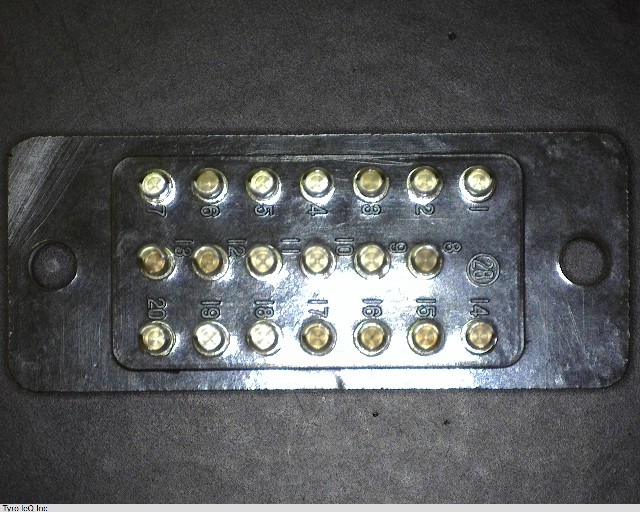

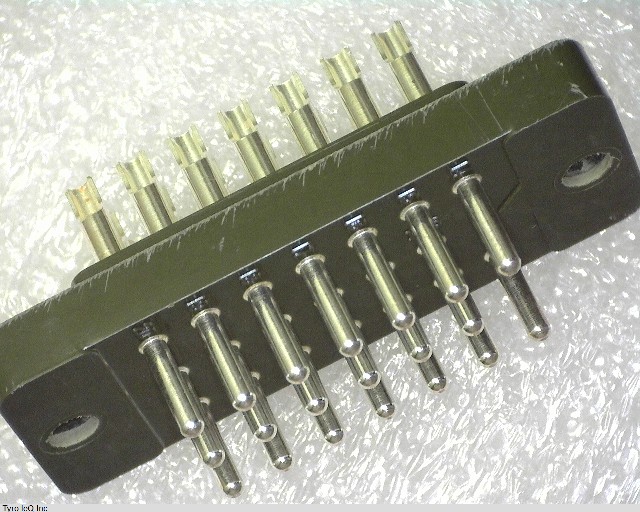

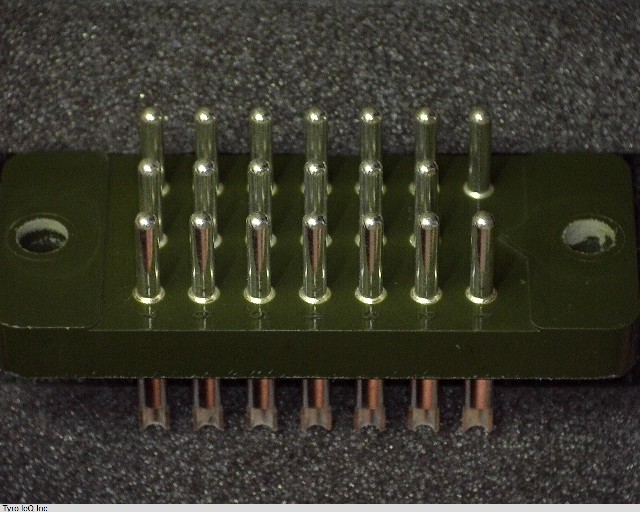

P-1320(09) データシート

Name: P-1320(09)
Brand: HIROSE
SKU: 260222304-0000-0000-0000

P-1320(09) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

P-1320(09) の詳細情報

型番	P-1320(09)
メーカー	HIROSE
データシート
Additional Feature	NONE
Body Breadth	0.669 inch
Body Length	1.614 inch
Body/Shell Style	PLUG
Connector Type	RECTANGULAR CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	5 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1200VAC V
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	GREEN
MIL Conformance	NO
Manufacturer Series	1300
Mating Contact Pitch	0.138 inch
Mating Contact Row Spacing	0.197 inch
Mounting Type	PANEL
Number of Rows Loaded	3
Option	GENERAL PURPOSE
Rated Current (Signal)	5 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	SOLDER LUG
Total Number of Contacts	20
