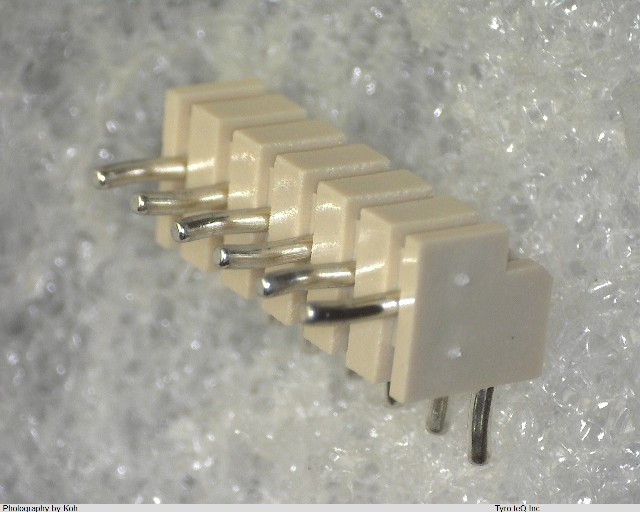

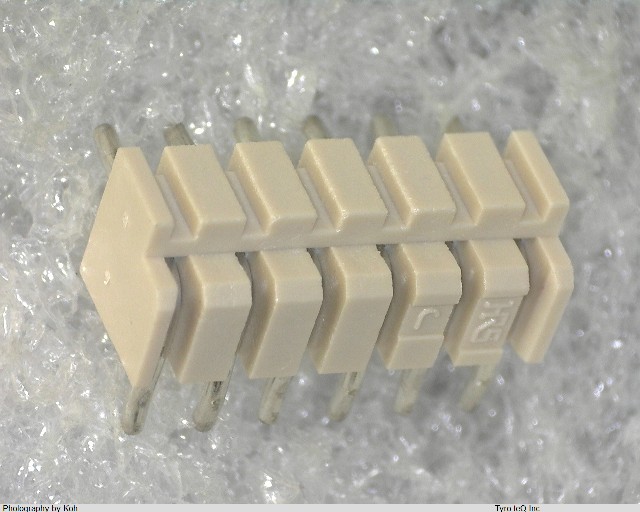

MDF14A-6P-2.5DS データシート

Name: MDF14A-6P-2.5DS
Brand: HIROSE
SKU: 230425131-0000-0000-0000

MDF14A-6P-2.5DS - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

MDF14A-6P-2.5DS の詳細情報

型番	MDF14A-6P-2.5DS
メーカー	HIROSE
データシート
Additional Feature	100 PCS. PER BAG
Body Breadth	0.217 inch
Body Depth	0.217 inch
Body Length	0.591 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1500VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	MDF14A
Mating Contact Pitch	0.098 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.13 inch
Terminal Pitch	2.5 mm
Termination Type	SOLDER
Total Number of Contacts	6
UL Flammability Code	94V-0
