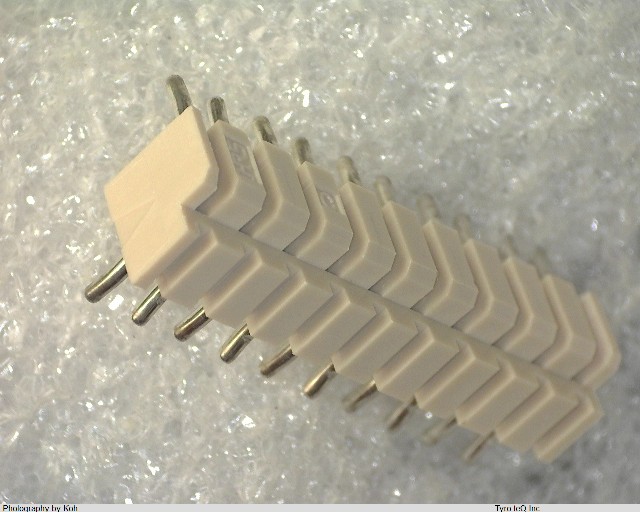

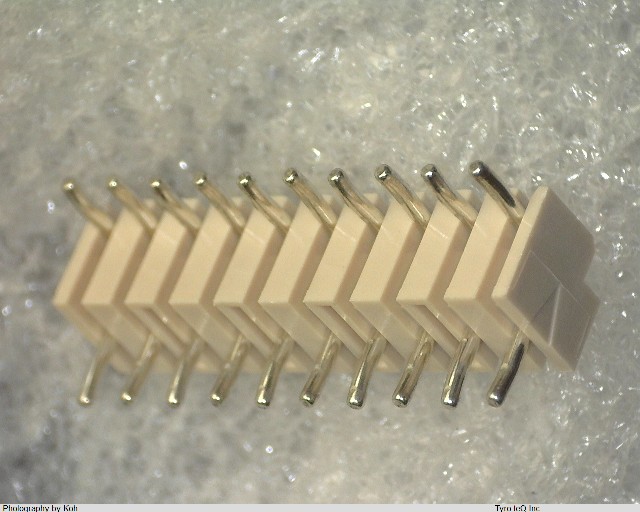

MDF14A-10P-2.5DS(05) データシート

Name: MDF14A-10P-2.5DS(05)
Brand: HIROSE
SKU: 230751489-0000-0000-0000

MDF14A-10P-2.5DS(05) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

すずめっき(100個/パック)

MDF14A-10P-2.5DS(05) の詳細情報

型番	MDF14A-10P-2.5DS(05)
メーカー	HIROSE
データシート
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	2.5 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
