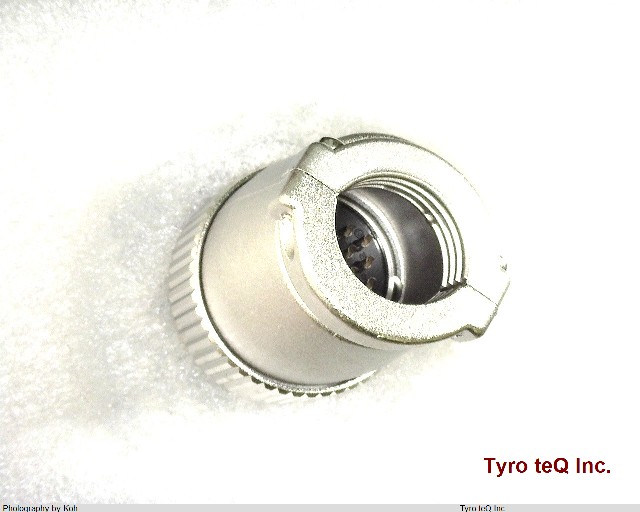

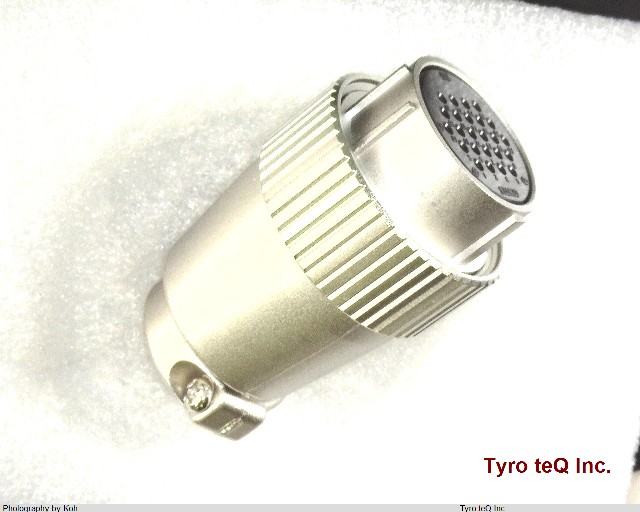

JR25PK-24S データシート

Name: JR25PK-24S
Brand: HIROSE
SKU: 200027516-0000-0000-0000

JR25PK-24S - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

JR25PK-24S の詳細情報

型番	JR25PK-24S
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: JRC-SC-212; JRC-SC-112
Backshell Type	SOLID
Body Breadth	1.331 inch
Body Length	1.331 inch
Body/Shell Style	PLUG
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	AG
Contact Finish - Termination	SILVER
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Resistance	5 mohm
Contact Style	RND PIN-SKT
Coupling Type	SNAP
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	SYNTHETIC RESIN
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	JR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ALUMINUM ALLOY
Shell Size	25
Sub Category	DIN Connectors
Termination Type	CRIMP
Total Number of Contacts	24
