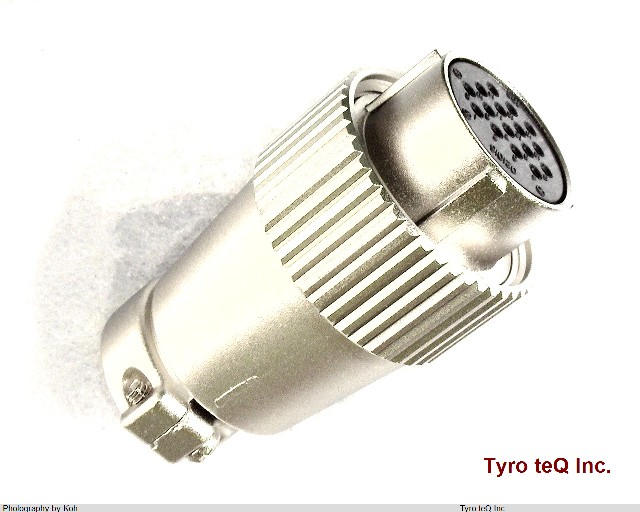

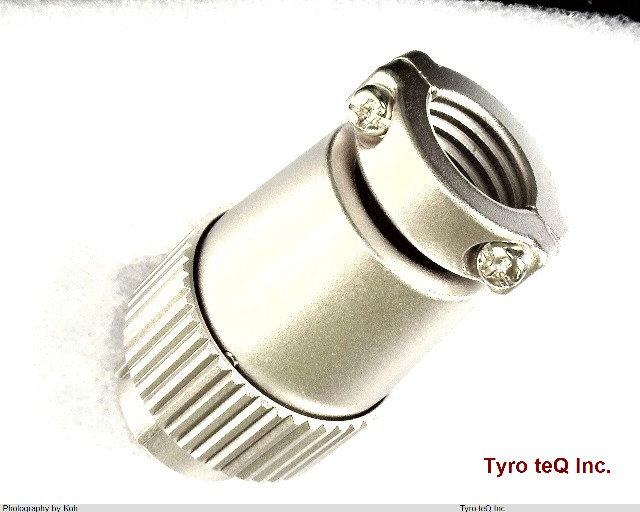

JR21PK-16S データシート

Name: JR21PK-16S
Brand: HIROSE
SKU: 200027553-0000-0000-0000

JR21PK-16S - HIROSE の商品詳細ページです。

9時間25分後以内に見積もり依頼を頂ければ、
04月26日(金) 9:00 までに見積もり回答いたします。

検討リストに追加する

JR21PK-16S の詳細情報

型番	JR21PK-16S
メーカー	HIROSE
データシート
Additional Feature	COMPATIBLE CONTACTS: JRC-SC-212; JRC-SC-112
Backshell Type	SOLID
Body Breadth	1.173 inch
Body Depth	2.067 inch
Body Length	1.173 inch
Body/Shell Style	JACK
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Resistance	5 mohm
Contact Style	RND PIN-SKT
Coupling Type	SNAP
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	500 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	JR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ALUMINUM ALLOY
Shell Size	21
Sub Category	DIN Connectors
Termination Type	CRIMP
Total Number of Contacts	16
