HRM-513 データシート

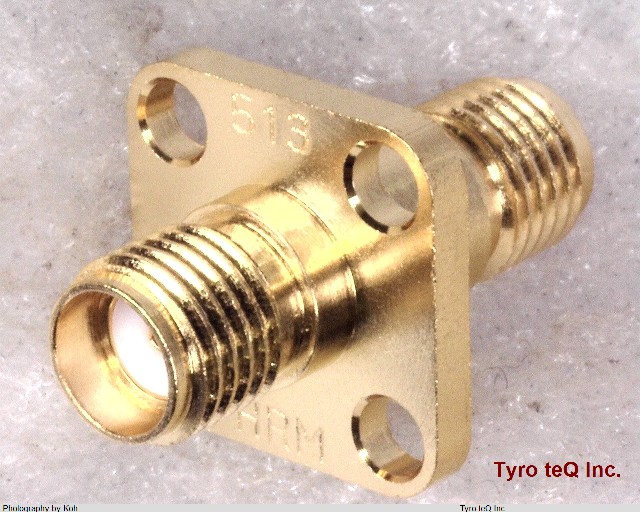

Name: HRM-513
Brand: HIROSE
SKU: 180138723-0000-0000-0000

HRM-513 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HRM-513 の詳細情報

型番	HRM-513
メーカー	HIROSE
データシート
Adapter Style	HRM-HRM
Additional Feature	STANDARD: MIL-C-39012
Characteristic Impedance	50 ohm
Connector Type	RF STRAIGHT ADAPTER
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Style	COAX
Coupling Type	THREADED
DIN Conformance	NO
Dielectric Withstanding Voltage	1400VAC V
Durability	1000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Loss	0.1 dB
Insulator Material	TETRAFLUORIDE
JESD-609 Code	e4
MIL Conformance	NO
Mounting Style	STRAIGHT
Mounting Type	CABLE AND PANEL
Operating Frequency-Max	12.4 GHz
Option	GENERAL PURPOSE
Panel Mount	YES
Reliability	COMMERCIAL
Sub Category	RF Adapters
VSWR	1.17
