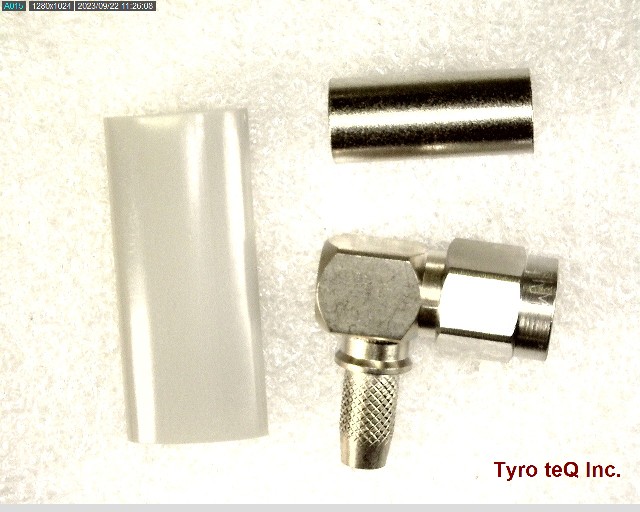

HRM-208S

Name: HRM-208S
Brand: HIROSE
SKU: 400067383-0000-0000-0000

HRM-208S - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HRM-208S の詳細情報

型番	HRM-208S
メーカー	HIROSE
Additional Feature	APPLICABLE CABLES: RG 142B/U; RG 55/U
Body Depth	0.704 inch
Body/Shell Style	PLUG
Cable Types	RG-142B/U
Characteristic Impedance	50 ohm
Connector Type	RF CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	4 mohm
Contact Style	COAX
Coupling Type	THREADED
DIN Conformance	NO
Dielectric Withstanding Voltage	1400VAC V
Durability	1000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Loss	0.1 dB
Insulation Resistance	500000000 ohm
Insulator Material	TETRAFLUORIDE
MIL Conformance	NO
Manufacturer Series	HRM
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	CABLE
Number of Ports	1
Operating Frequency-Max	12.4 GHz
Option	GENERAL PURPOSE
Panel Mount	NO
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STAINLESS STEEL
Sub Category	Other RF Connectors
Termination Type	SOLDER
Total Number of Contacts	1
VSWR	1.1
