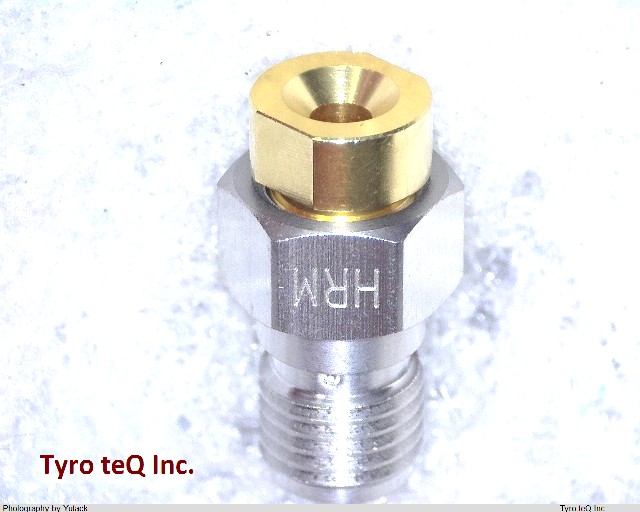

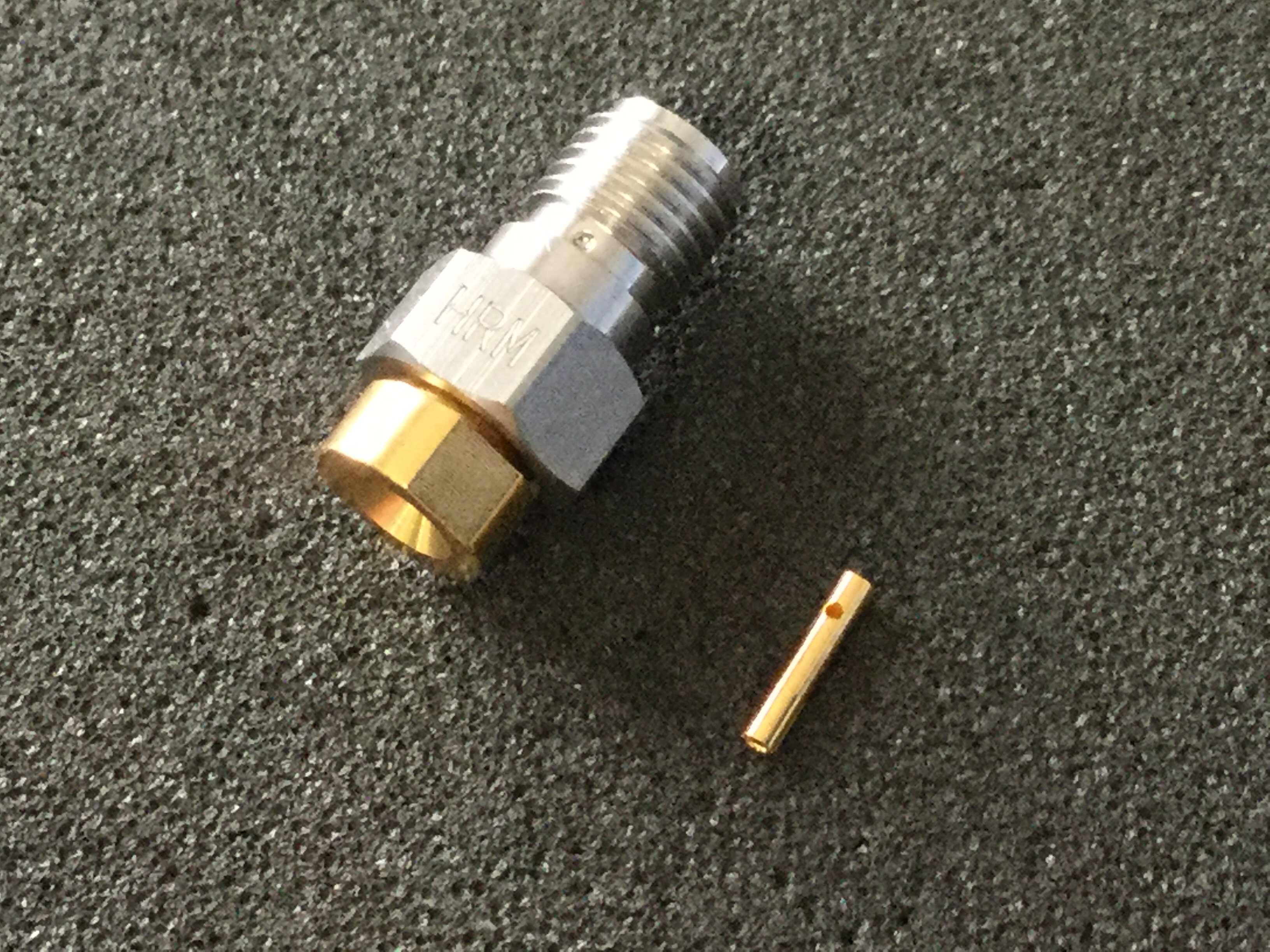

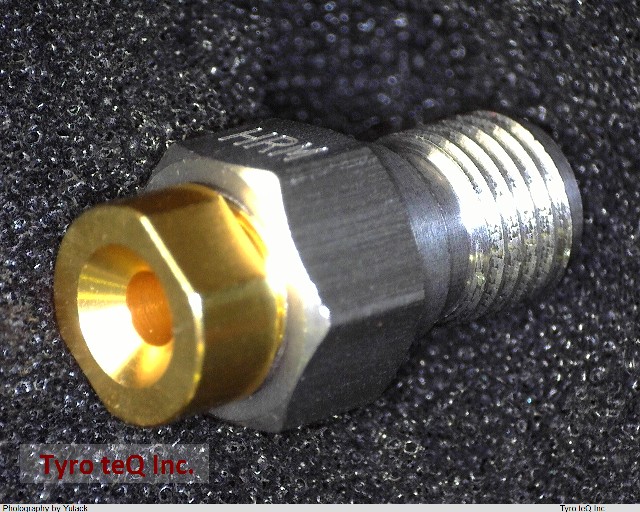

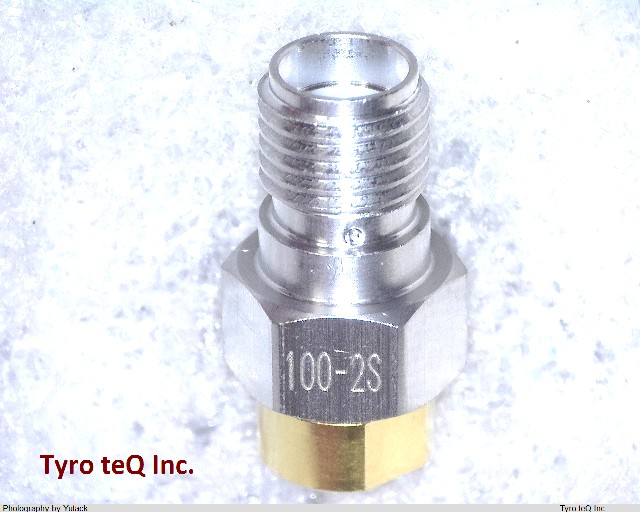

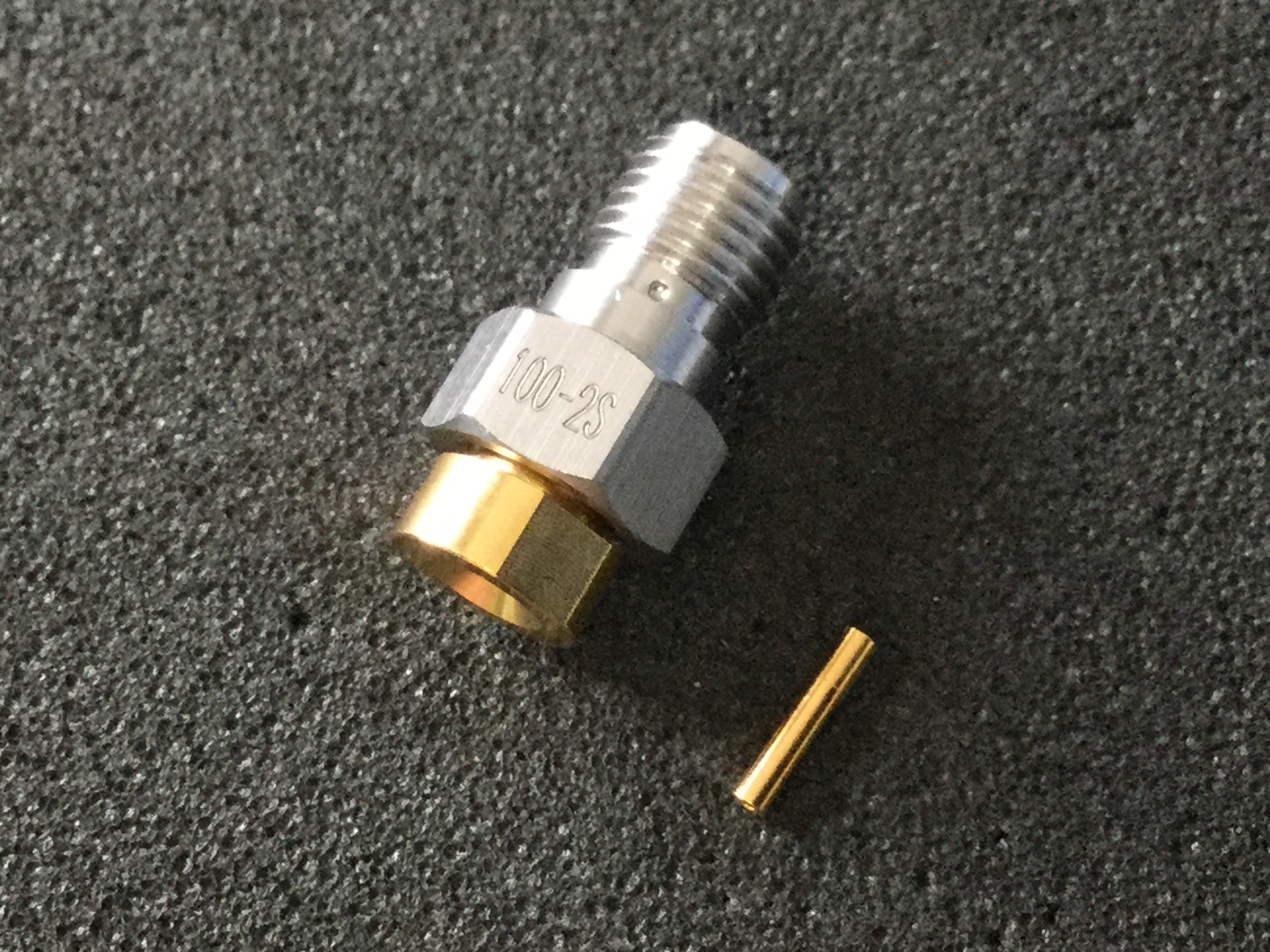

HRM-100-2S(09) データシート

Name: HRM-100-2S(09)
Brand: HIROSE
SKU: 180146285-0000-0000-0000

HRM-100-2S(09) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HRM-100-2S(09) の詳細情報

型番	HRM-100-2S(09)
メーカー	HIROSE
データシート
Additional Feature	STANDARD: MIL-C-39012
Body Depth	0.315 inch
Body Diameter	0.315 inch
Body/Shell Style	JACK
Cable Types	SEMI-RIGID
Characteristic Impedance	50 ohm
Connector Type	RF CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	4 mohm
Contact Style	COAX
Coupling Type	THREADED
DIN Conformance	NO
Dielectric Withstanding Voltage	1400VAC V
Durability	1000 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Material	TETRAFLUORIDE
JESD-609 Code	e4
MIL Conformance	YES
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Operating Frequency-Max	12.4 GHz
Option	GENERAL PURPOSE
Panel Mount	NO
Reliability	COMMERCIAL
Shell Finish	GOLD
Shell Material	STAINLESS STEEL
Sub Category	RF SMA/SSMA Connectors
Termination Type	SOLDER
Total Number of Contacts	1
VSWR	1.24
