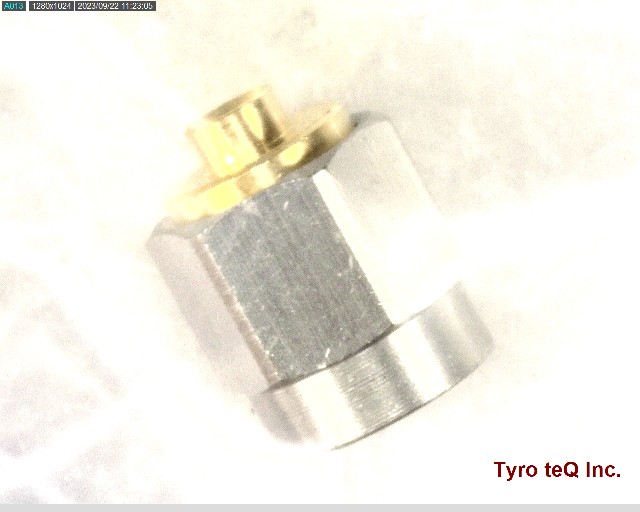

HRM-100-1S1

Name: HRM-100-1S1
Brand: HIROSE
SKU: 400067384-0000-0000-0000

HRM-100-1S1 - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HRM-100-1S1 の詳細情報

型番	HRM-100-1S1
メーカー	HIROSE
Additional Feature	STANDARD: MIL-C-39012
Body Depth	0.433 inch
Body Diameter	0.315 inch
Body/Shell Style	PLUG
Cable Types	SEMI-RIGID
Characteristic Impedance	50 ohm
Connector Type	RF CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	4 mohm
Contact Style	COAX
Coupling Type	THREADED
DIN Conformance	NO
Dielectric Withstanding Voltage	1414VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Loss	0.1 dB
Insulation Resistance	500000000 ohm
Insulator Material	POLYTETRAFLUOROETHYLENE
JESD-609 Code	e4
MIL Conformance	YES
Manufacturer Series	HRM
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Operating Frequency-Max	12.4 GHz
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Panel Mount	NO
Reference Standard	MIL
Shell Material	STAINLESS STEEL
Termination Type	SOLDER
Total Number of Contacts	1
VSWR	1.17
