HR212-10RA-8SDL(74) データシート

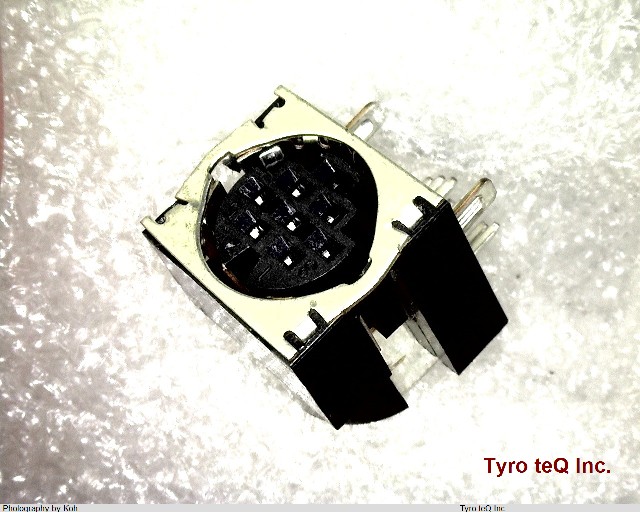

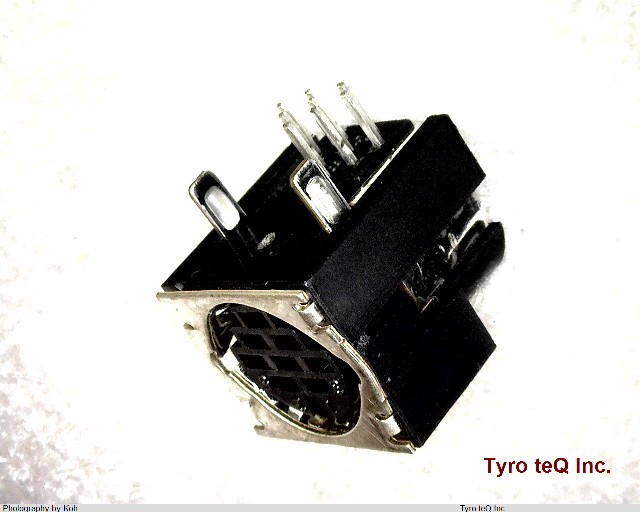

Name: HR212-10RA-8SDL(74)
Brand: HIROSE
SKU: 180159062-0000-0000-0000

HR212-10RA-8SDL(74) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HR212-10RA-8SDL(74) の詳細情報

型番	HR212-10RA-8SDL(74)
メーカー	HIROSE
データシート
Body Breadth	0.472 inch
Body Depth	0.551 inch
Body Length	0.512 inch
Body/Shell Style	RECEPTACLE
Connector Type	CIRCULAR DIN CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Matte Tin (Sn)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	80 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	YES
Durability	1000 Cycles
EMI Shielded	NO
IEC Conformance	NO
Insulation Resistance	200000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Ports	1
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-15 Cel
Option	GENERAL PURPOSE
Plating Thickness	118u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	TIN
Shell Material	PHOSPHOR BRONZE
Sub Category	DIN Connectors
Terminal Length	0.138 inch
Termination Type	SOLDER
Total Number of Contacts	8
Withdrawl Force-Min	.14734 N
