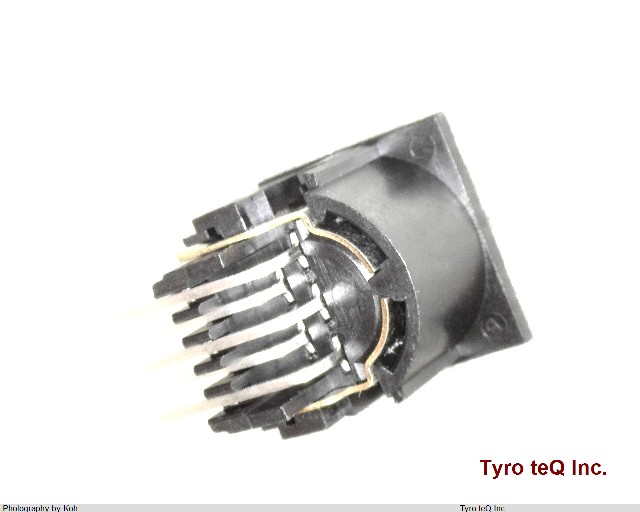

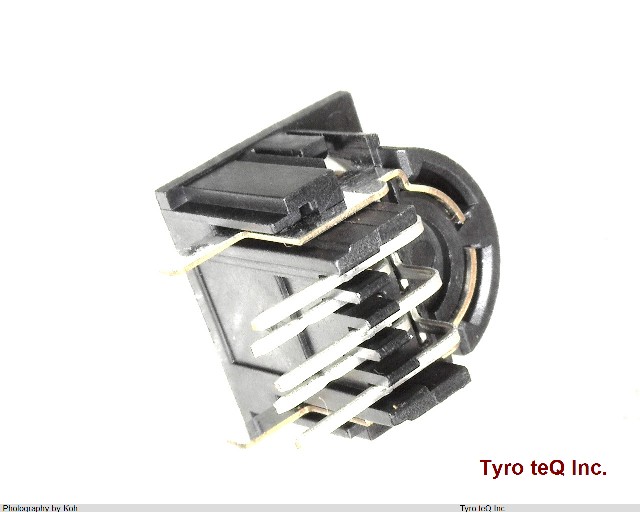

HR12-10R-5SDL データシート

Name: HR12-10R-5SDL
Brand: HIROSE
SKU: 180104495-0000-0000-0000

HR12-10R-5SDL - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HR12-10R-5SDL の詳細情報

型番	HR12-10R-5SDL
メーカー	HIROSE
データシート
Additional Feature	SHIELDED
Body Breadth	0.472 inch
Body Depth	0.61 inch
Body Length	0.512 inch
Body/Shell Style	RECEPTACLE
Connector Type	CIRCULAR DIN CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Matte Tin (Sn)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	YES
Dielectric Withstanding Voltage	300VAC V
EMI Shielded	NO
IEC Conformance	NO
Insulation Resistance	200000000 ohm
Insulator Color	BLACK
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	HR12
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Ports	1
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	DIN Connectors
Terminal Length	0.138 inch
Termination Type	SOLDER
Total Number of Contacts	5
