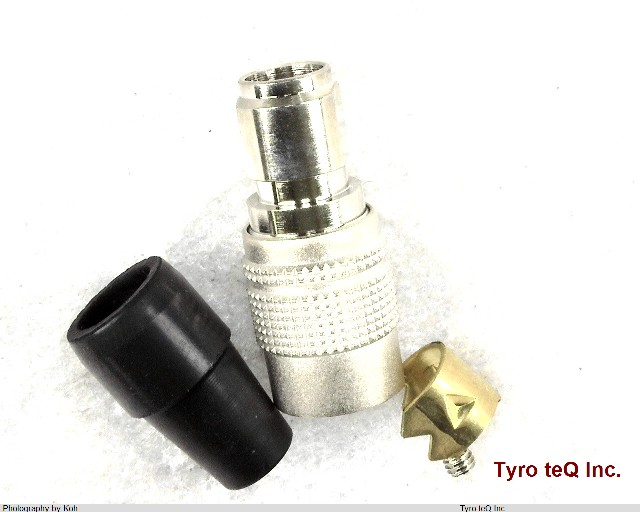

HR10A-7P-4P(73) データシート

Name: HR10A-7P-4P(73)
Brand: HIROSE
SKU: 180146196-0000-0000-0000

HR10A-7P-4P(73) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HR10A-7P-4P(73) の詳細情報

型番	HR10A-7P-4P(73)
メーカー	HIROSE
データシート
Additional Feature	POLARIZED
Backshell Type	SOLID
Body Depth	1.378 inch
Body/Shell Style	PLUG
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Silver (Ag)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Resistance	10 mohm
Contact Style	RND PIN-SKT
Coupling Type	SNAP
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	1000 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	CABLE
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reliability	COMMERCIAL
Shell Finish	NICKEL PLATED
Shell Material	ZINC ALLOY AND BRASS
Shell Size	7
Sub Category	DIN Connectors
Termination Type	SOLDER
Total Number of Contacts	4
