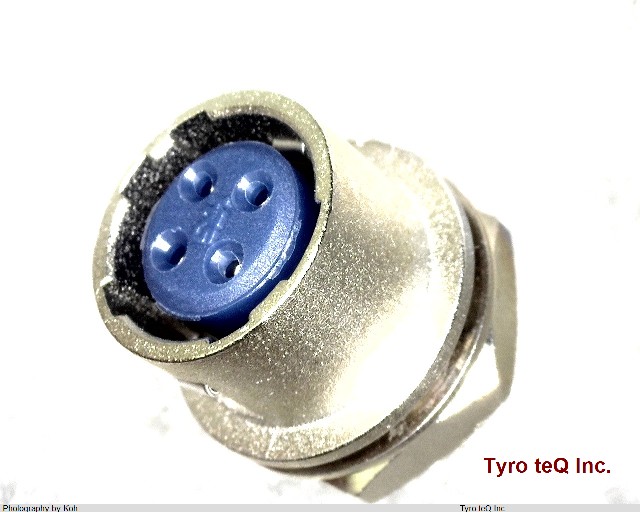

HR10-7R-4S データシート

Name: HR10-7R-4S
Brand: HIROSE
SKU: 180056291-0000-0000-0000

HR10-7R-4S - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HR10-7R-4S の詳細情報

型番	HR10-7R-4S
メーカー	HIROSE
データシート
Additional Feature	POLARIZED
Backshell Type	SOLID
Body Depth	0.472 inch
Body/Shell Style	RECEPTACLE
Connector Type	CIRCULAR CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	10 mohm
Contact Style	RND PIN-SKT
Coupling Type	SNAP
DIN Conformance	NO
Durability	1000 Cycles
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	HR10
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD AND PANEL
Number of Ports	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ZINC ALLOY
Shell Size	7
Sub Category	DIN Connectors
Terminal Length	0.079 inch
Termination Type	SOLDER
Total Number of Contacts	4
