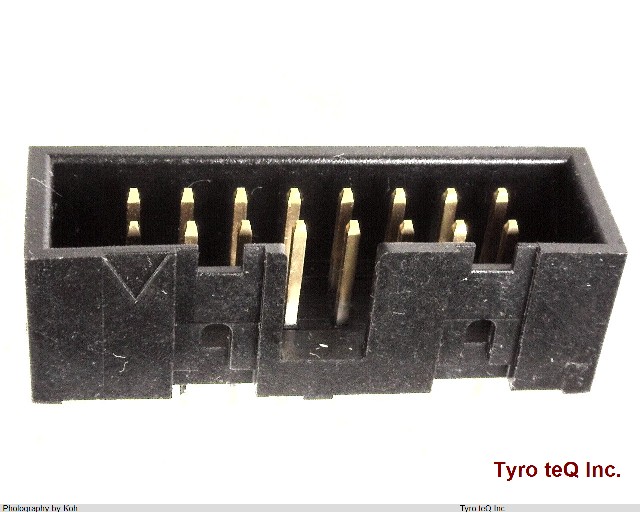

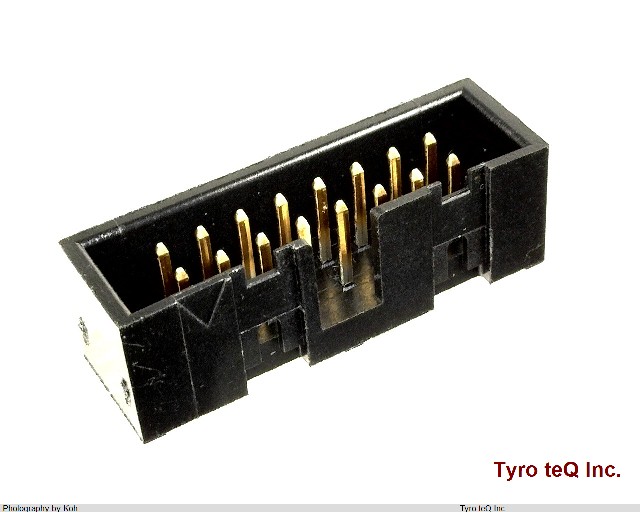

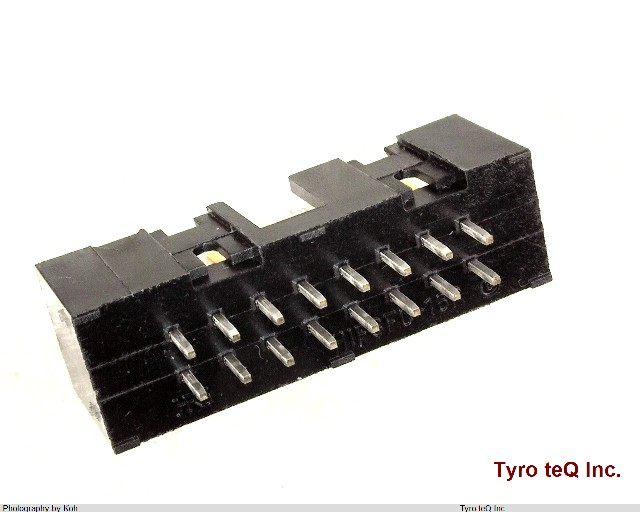

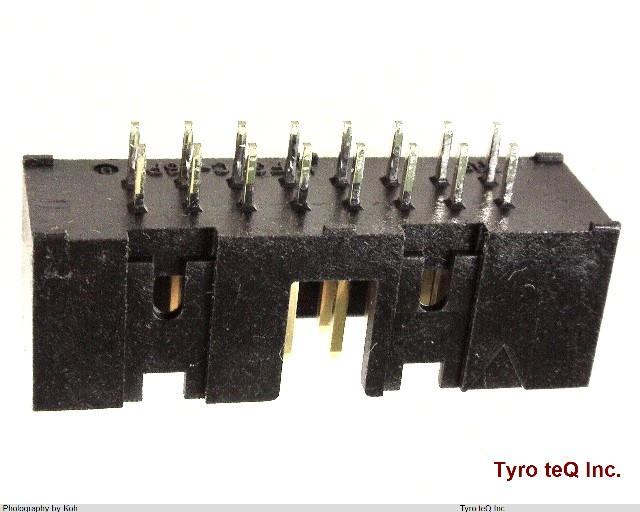

HIF3FC-16PA-2.54DSA データシート

Name: HIF3FC-16PA-2.54DSA
Brand: HIROSE
SKU: 180000095-0000-0000-0000

HIF3FC-16PA-2.54DSA - HIROSE の商品詳細ページです。

67時間0分後以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

HIF3FC-16PA-2.54DSA の詳細情報

型番	HIF3FC-16PA-2.54DSA
メーカー	HIROSE
データシート
Additional Feature	LOW PROFILE
Body Breadth	0.335 inch
Body Depth	0.35 inch
Body Length	1.095 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	HIF3FC
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	GUIDE SLOT
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.11 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	16
UL Flammability Code	94V-0
