HIF3BD-10PD-2.54R-MC データシート

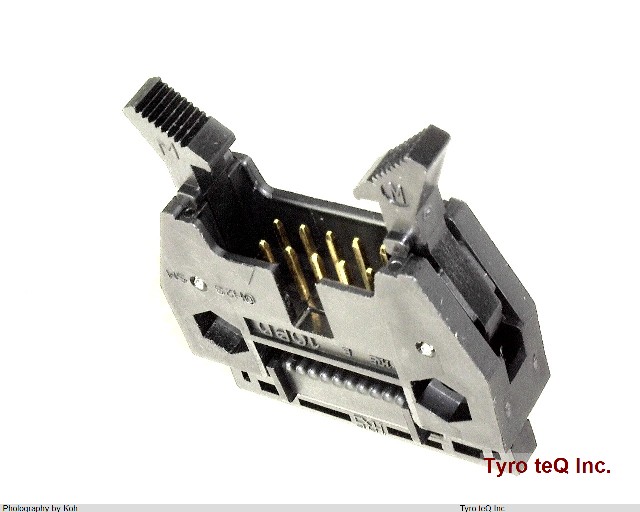

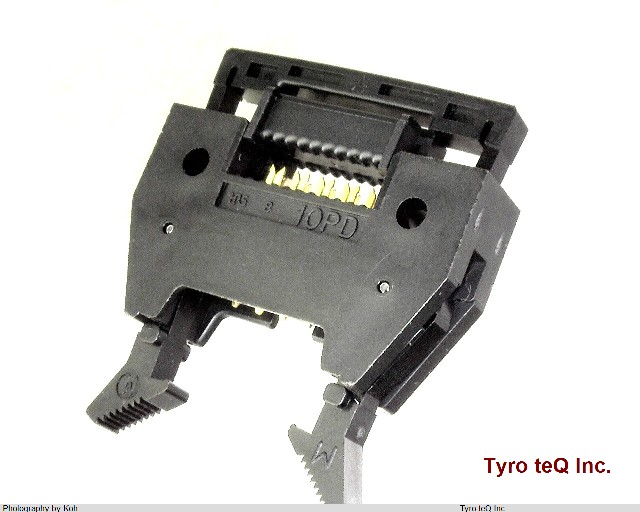

Name: HIF3BD-10PD-2.54R-MC
Brand: HIROSE
SKU: 180122516-0000-0000-0000

HIF3BD-10PD-2.54R-MC - HIROSE の商品詳細ページです。

63時間56分後以内に見積もり依頼を頂ければ、
04月23日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

HIF3BD-10PD-2.54R-MC の詳細情報

型番	HIF3BD-10PD-2.54R-MC
メーカー	HIROSE
データシート
Additional Feature	LATCHED, POLARIZED
Body Breadth	0.335 inch
Body Depth	0.933 inch
Body Length	1.259 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LATCH & EJECT
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization Key	CTR W/GUIDE SLOTS
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0 inch
Termination Type	IDC
Total Number of Contacts	10
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
