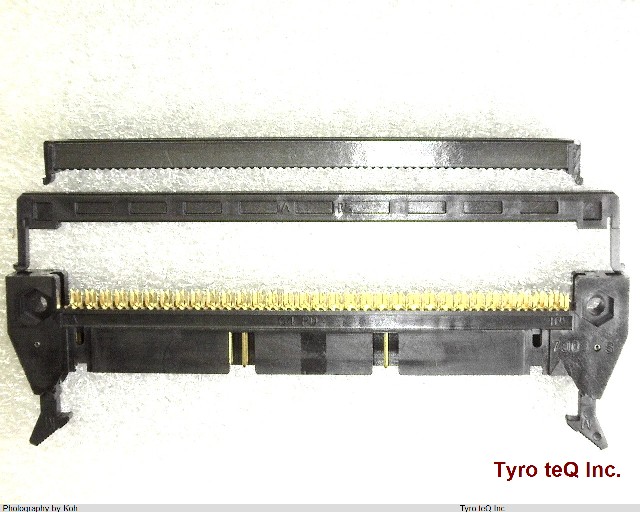

型番 | HIF3BA-64PD-2.54R-MC |
---|---|
メーカー | HIROSE |
データシート | |
Additional Feature | POLARIZED |
Body Breadth | 0.335 inch |
Body Depth | 1.012 inch |
Body Length | 3.959 inch |
Body/Shell Style | PLUG |
Connector Type | BOARD CONNECTOR |
Contact Design | PREASSEM CONN |
Contact Finish - Mating | NOT SPECIFIED |
Contact Gender | MALE |
Contact Material | NOT SPECIFIED |
Contact Pattern | RECTANGULAR |
Contact Resistance | 15 mohm |
Contact Style | SQ PIN-SKT |
DIN Conformance | NO |
Dielectric Withstanding Voltage | 650VAC V |
Durability | 500 Cycles |
Filter Feature | NO |
IEC Conformance | NO |
Insulation Resistance | 1000000000 ohm |
Insulator Color | BLACK |
Insulator Material | POLYBUTYLENE TEREPHTHALATE |
MIL Conformance | NO |
Mating Contact Pitch | 0.1 inch |
Mating Contact Row Spacing | 0.1 inch |
Mating Information | MULTIPLE MATING PARTS AVAILABLE |
Mixed Contacts | NO |
Mounting Option 1 | LATCH & EJECT |
Mounting Option 2 | LOCKING |
Mounting Type | CABLE |
Number of Rows Loaded | 2 |
Operating Temperature-Max | 85 Cel |
Operating Temperature-Min | -55 Cel |
Option | GENERAL PURPOSE |
Polarization Key | ENDS |
Rated Current (Signal) | 1 A |
Reference Standard | UL |
Reliability | COMMERCIAL |
Sub Category | Headers and Edge Type Connectors |
Terminal Length | 0 inch |
Termination Type | IDC |
Total Number of Contacts | 64 |
UL Flammability Code | 94V-0 |
Wire Size-Max | 28 AWG |
Wire Size-Min | 28 AWG |
