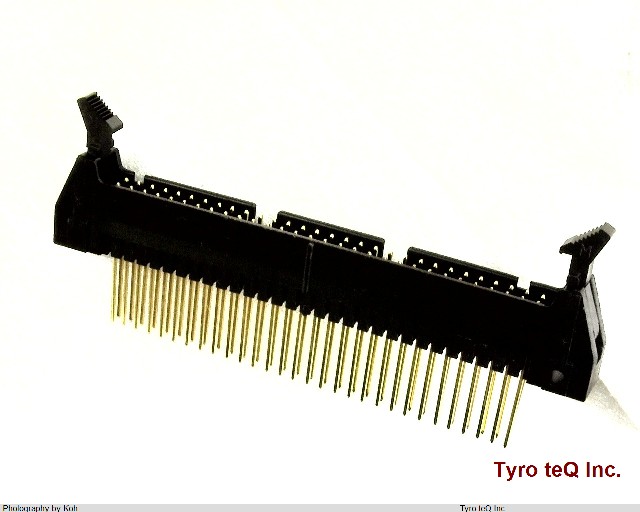

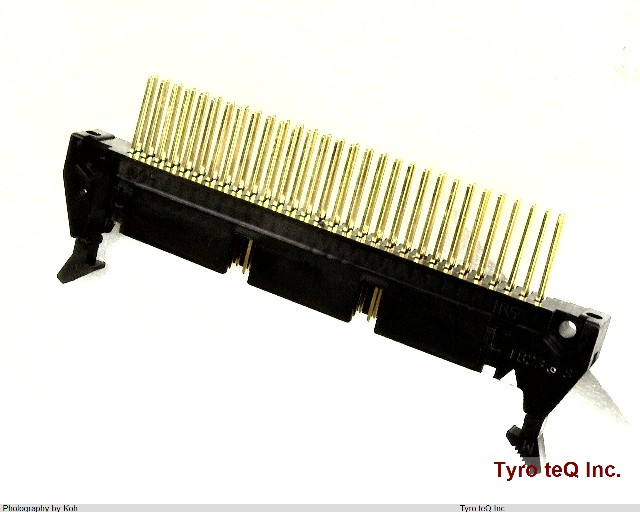

HIF3BA-60P-2.54W データシート

Name: HIF3BA-60P-2.54W
Brand: HIROSE
SKU: 180084582-0000-0000-0000

HIF3BA-60P-2.54W - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HIF3BA-60P-2.54W の詳細情報

型番	HIF3BA-60P-2.54W
メーカー	HIROSE
データシート
Additional Feature	POLARIZED
Board Mounting Option	HOLE .086-.098
Body Breadth	0.335 inch
Body Depth	0.701 inch
Body Length	3.76 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	YES
Manufacturer Series	HIF3B
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LATCH
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Polarization Key	DUAL POLARIZED
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.511 inch
Terminal Pitch	2.54 mm
Termination Type	WIRE WRAP
Total Number of Contacts	60
