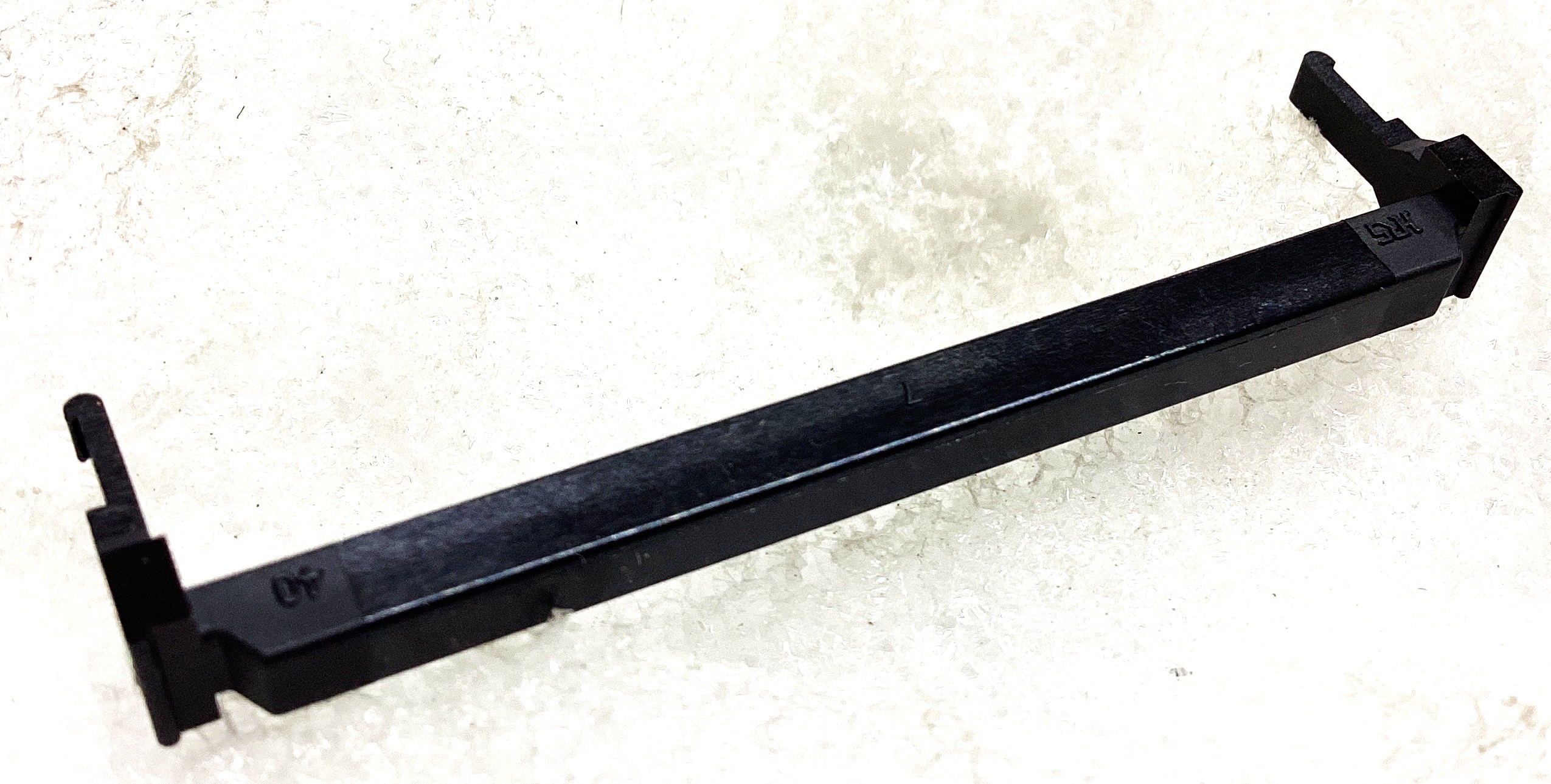

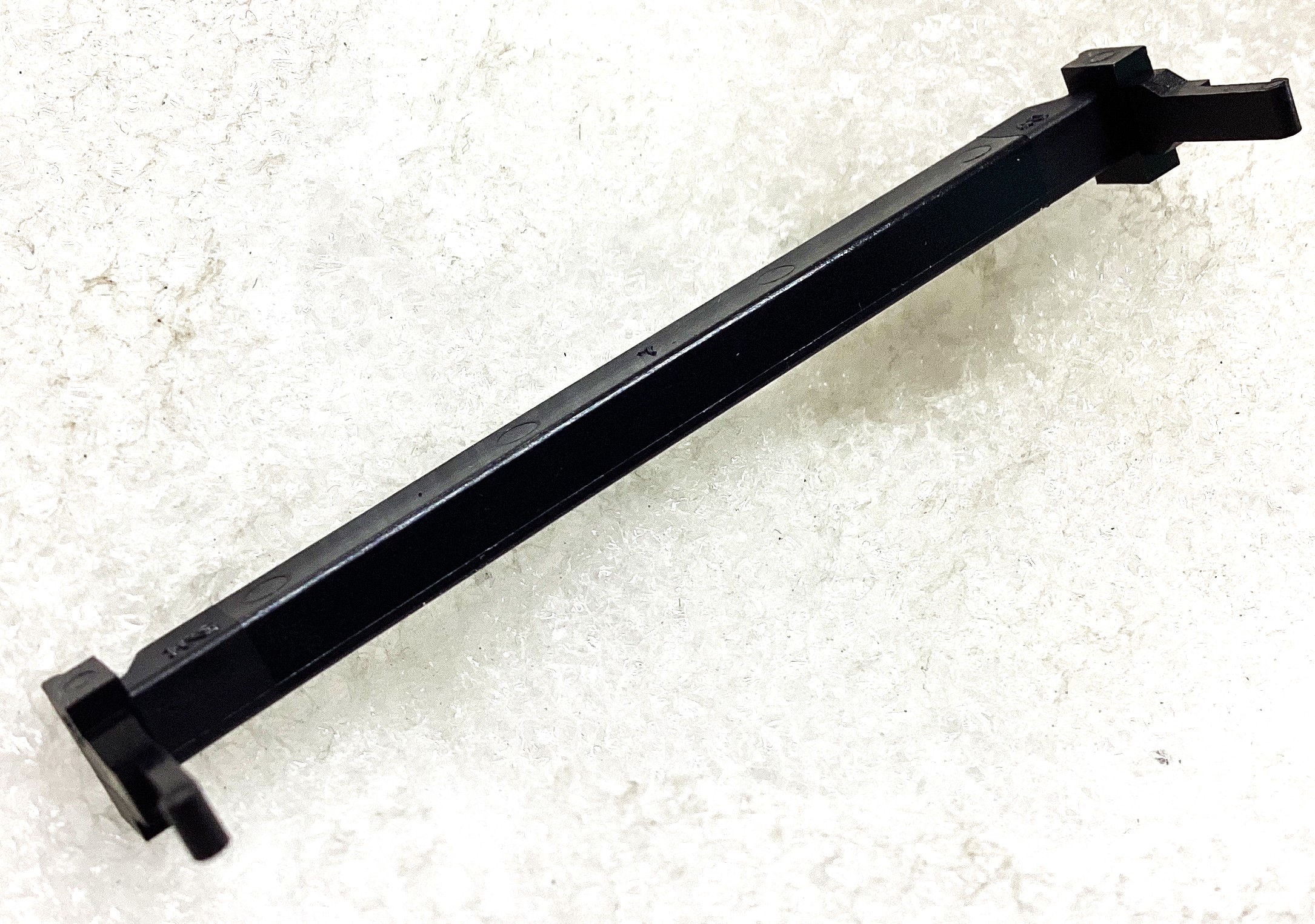

HIF3BA-40D-2.54R(63)

Name: HIF3BA-40D-2.54R(63)
Brand: HIROSE
SKU: 400005611-0000-0000-0000

HIF3BA-40D-2.54R(63) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HIF3BA-40D-2.54R(63) の詳細情報

型番	HIF3BA-40D-2.54R(63)
メーカー	HIROSE
Body Breadth	0.236 inch
Body Depth	0.276 inch
Body Length	2.18 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	8u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	CSA;CUL;UL
Terminal Length	0.106 inch
Termination Type	IDC
Total Number of Contacts	40
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
