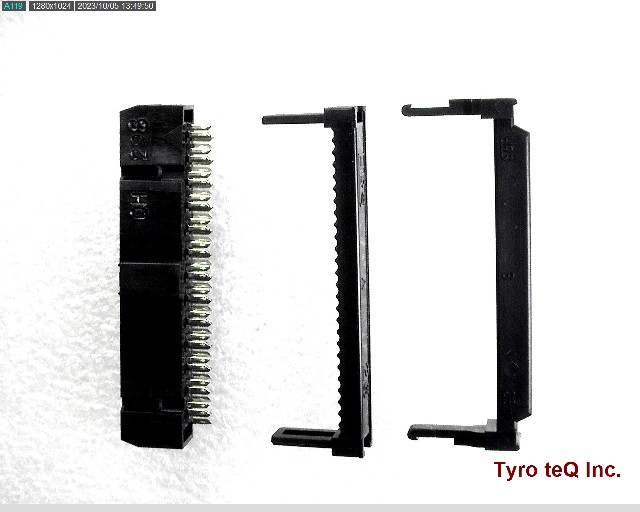

HIF3BA-26DA-2.54R データシート

Name: HIF3BA-26DA-2.54R
Brand: HIROSE
SKU: 180048500-0000-0000-0000

HIF3BA-26DA-2.54R - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HIF3BA-26DA-2.54R の詳細情報

型番	HIF3BA-26DA-2.54R
メーカー	HIROSE
データシート
Additional Feature	POLARIZED
Body Breadth	0.276 inch
Body Depth	0.276 inch
Body Length	1.48 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	SN-PB
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	YES
Manufacturer Series	HIF3BA
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED KEY
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0 inch
Termination Type	IDC
Total Number of Contacts	26
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
