HIF3BA-26D-2.54C(63) データシート

Name: HIF3BA-26D-2.54C(63)
Brand: HIROSE
SKU: 180159830-0000-0000-0000

HIF3BA-26D-2.54C(63) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

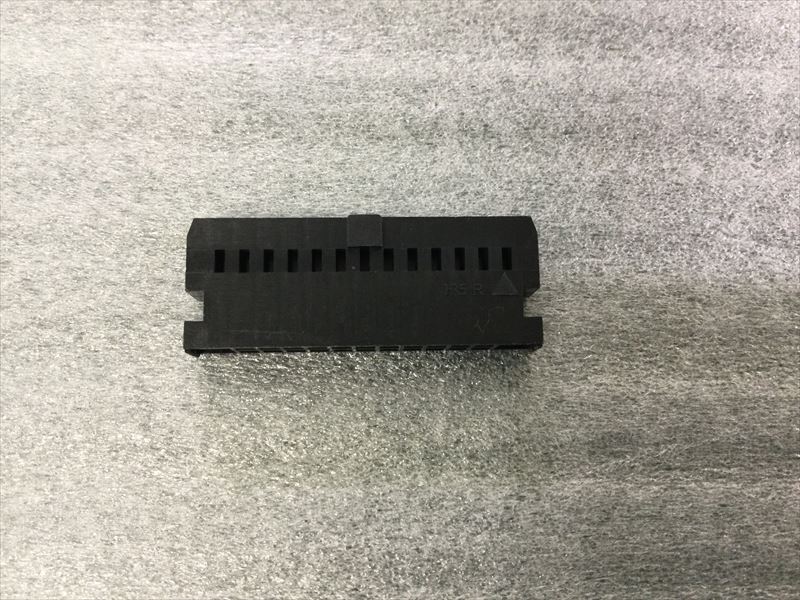

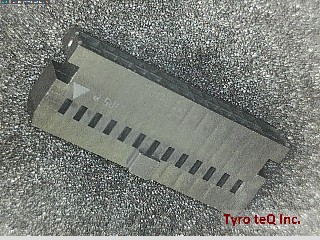

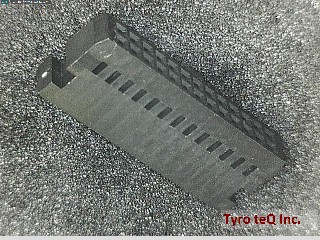

HIF3BA-26D-2.54C(63) の詳細情報

型番	HIF3BA-26D-2.54C(63)
メーカー	HIROSE
データシート
Additional Feature	REFERENCE STANDARD: CUL/CSA
Body Breadth	0.283 inch
Body Depth	0.567 inch
Body Length	1.48 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	STAMPED
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	650VAC V
Durability	500 Cycles
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZATION NOTCH
Rated Current (Signal)	1 A
Reference Standard	MIL; UL
Termination Type	CRIMP
Total Number of Contacts	26
UL Flammability Code	94V-0
Wire Size-Max	32 AWG
Wire Size-Min	36 AWG
