HDEB-9S(05) データシート

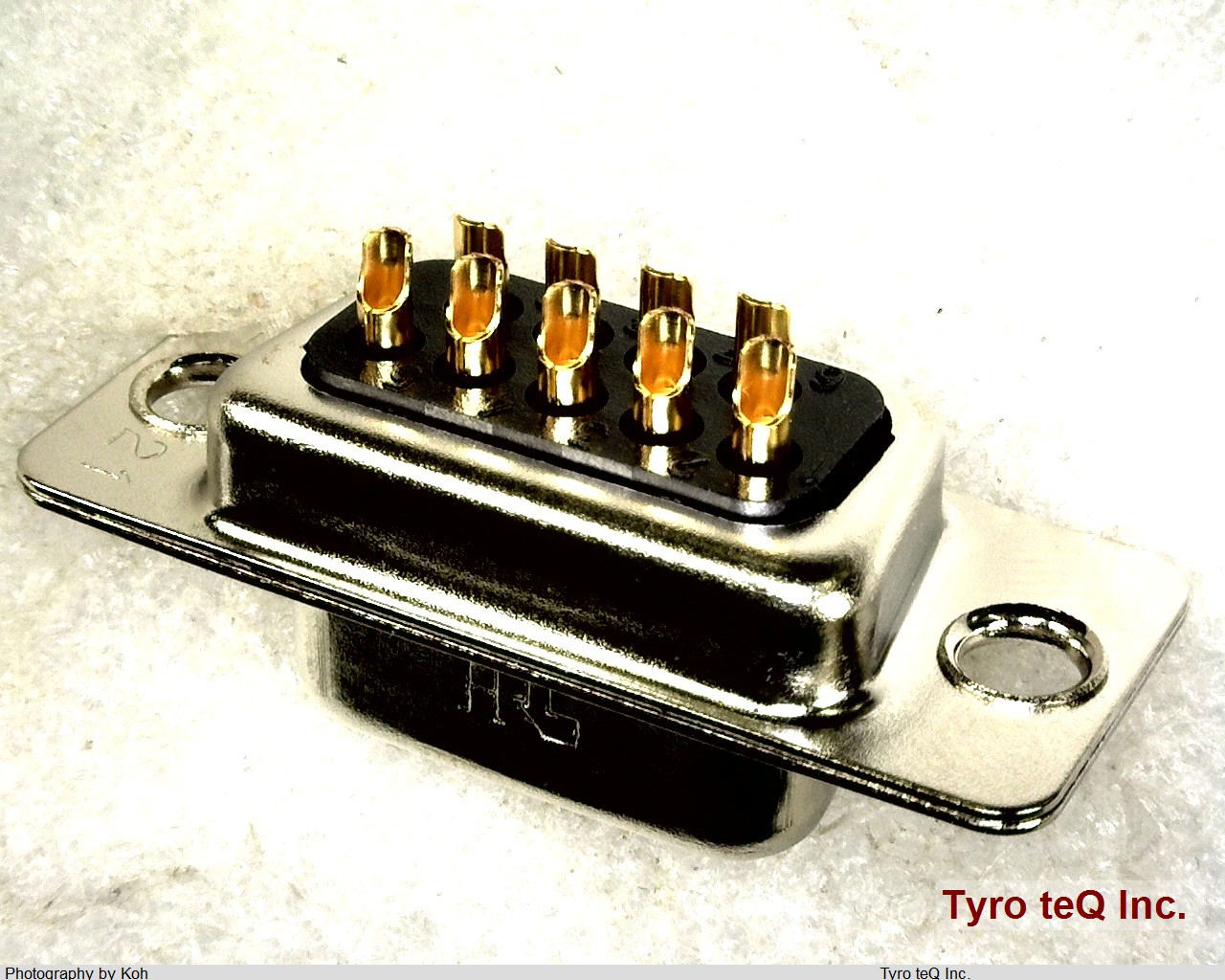

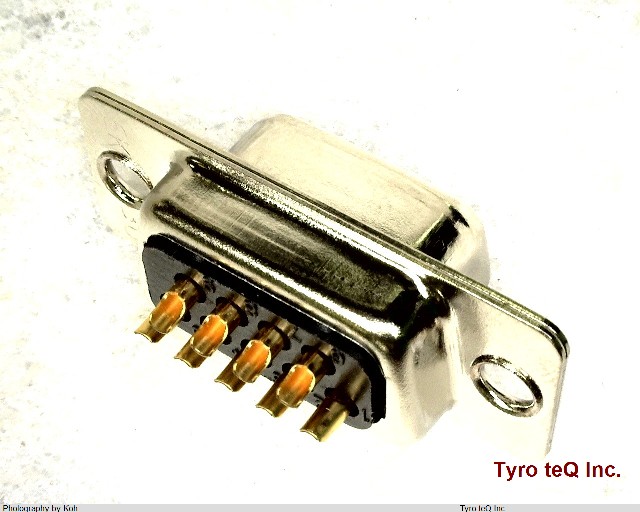

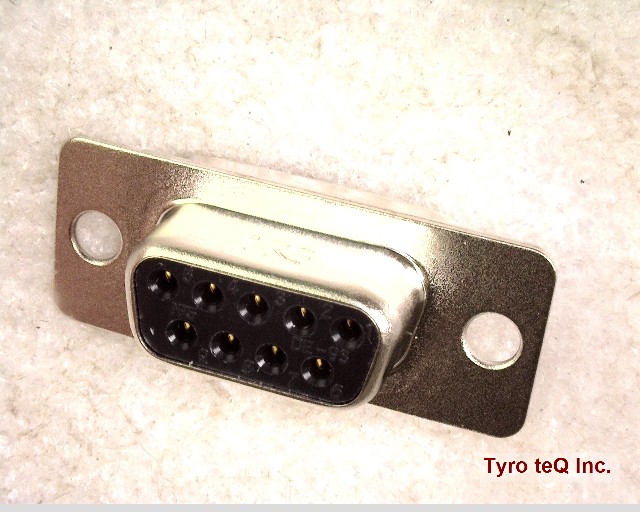

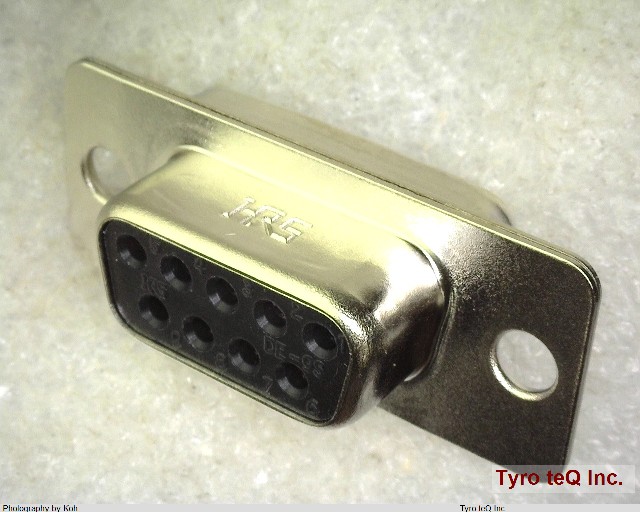

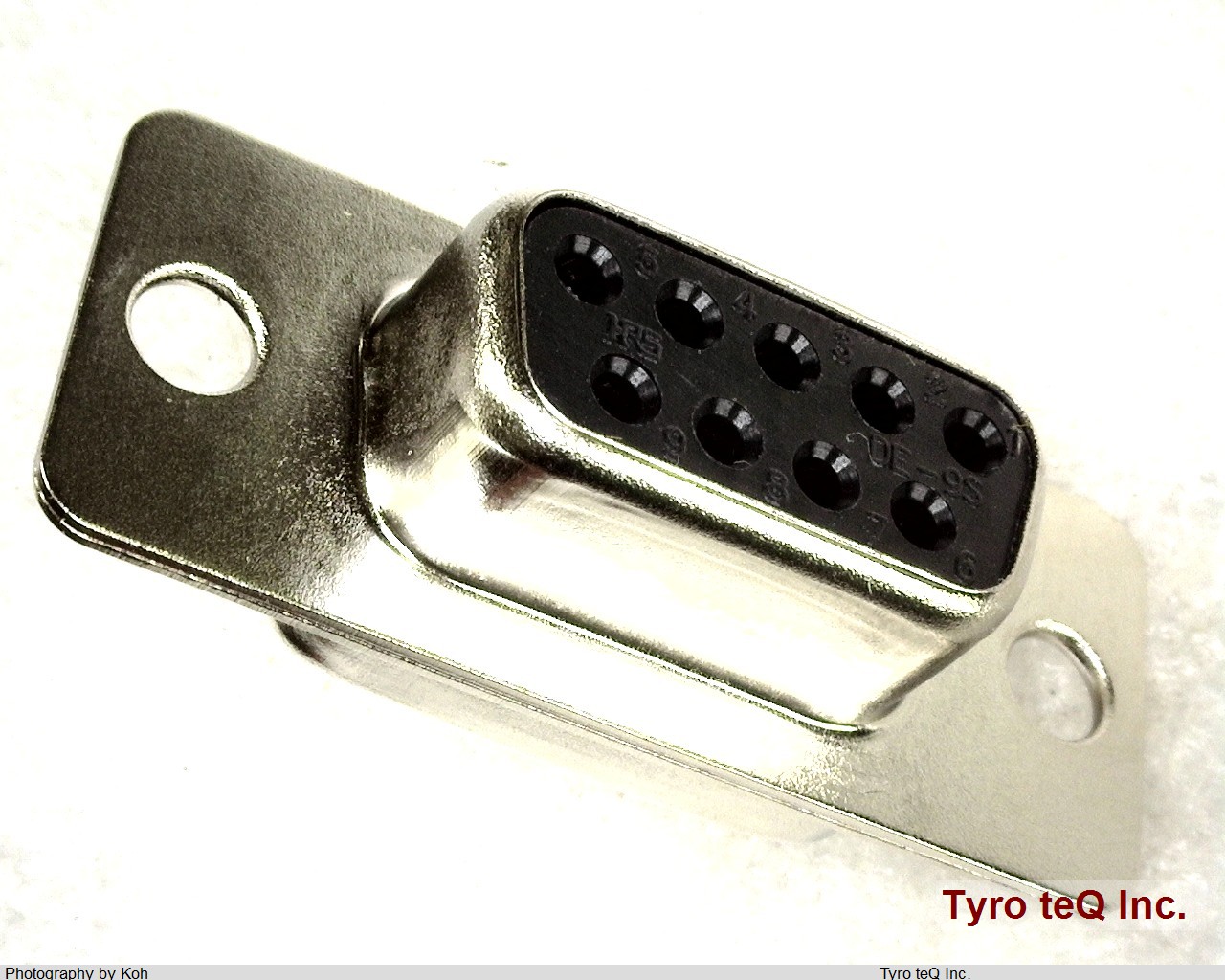

Name: HDEB-9S(05)
Brand: HIROSE
SKU: 180146606-0000-0000-0000

HDEB-9S(05) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

シェルニッケルめっき,端子結線部:ニッケルめっき+金フラッシュめっき

HDEB-9S(05) の詳細情報

型番	HDEB-9S(05)
メーカー	HIROSE
データシート
Body Breadth	0.494 inch
Body Depth	0.297 inch
Body Length	1.213 inch
Body/Shell Style	SOCKET
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	7 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1700VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	PANEL
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Shell Size	1/E
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
