HDAB-15P(05) データシート

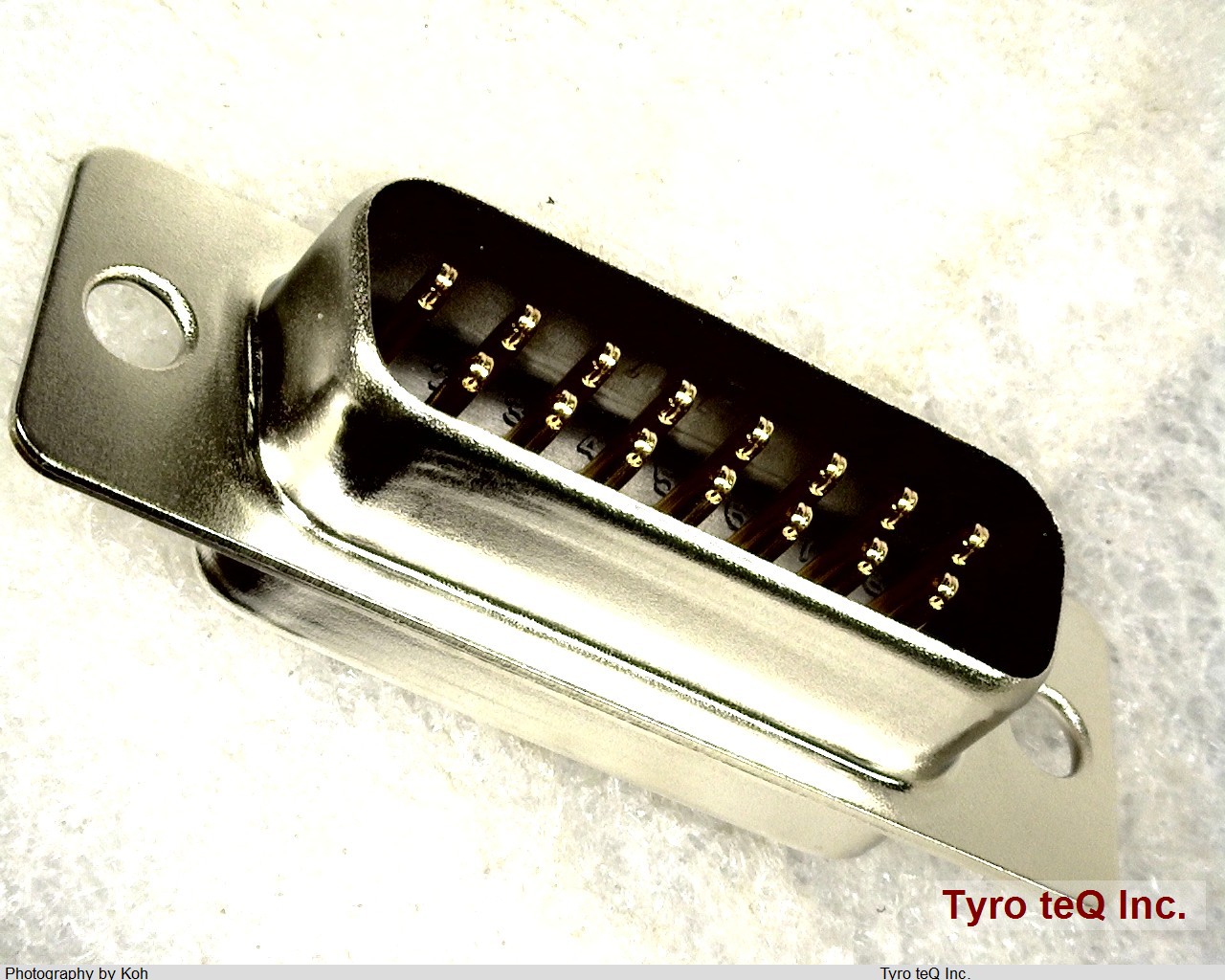

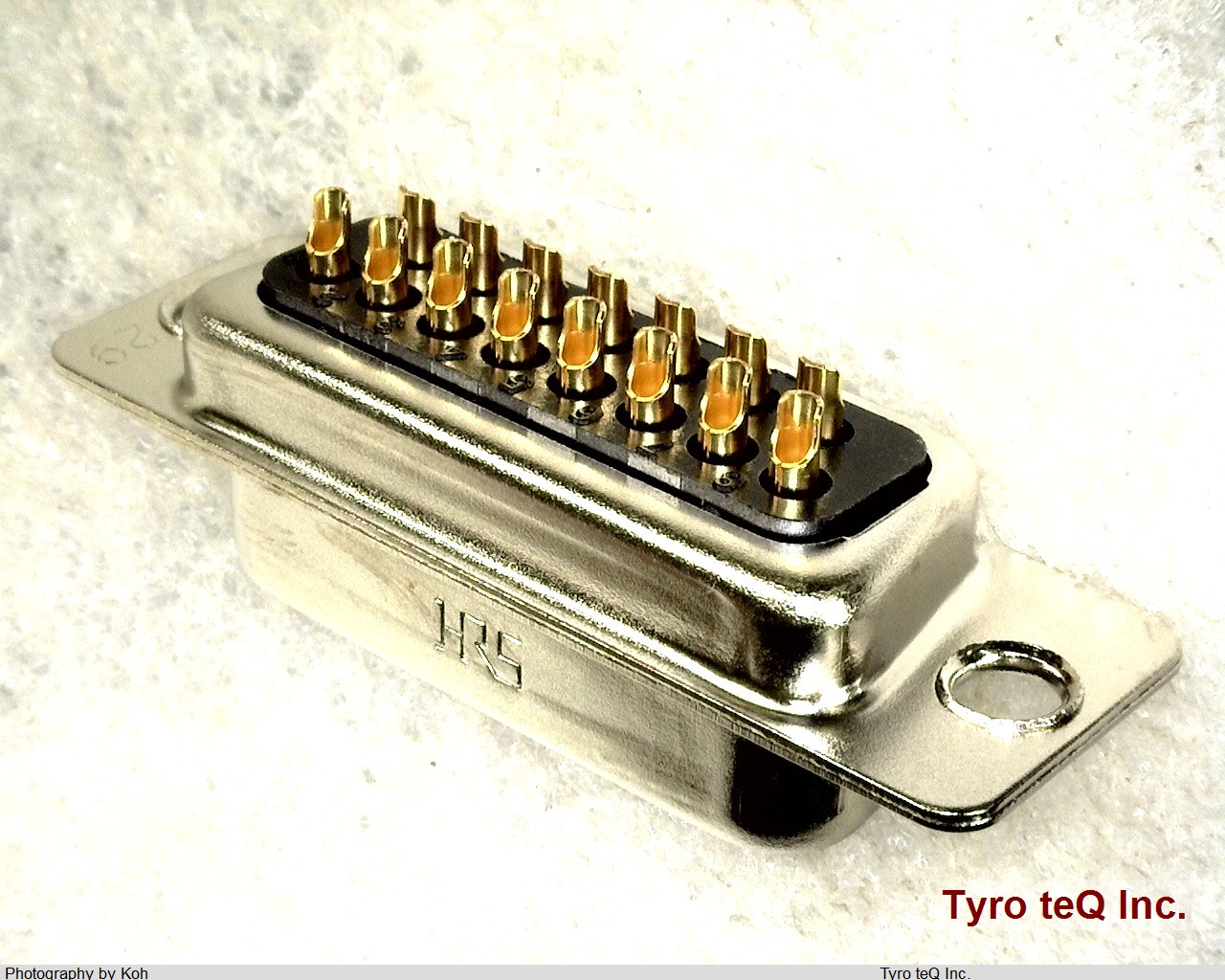

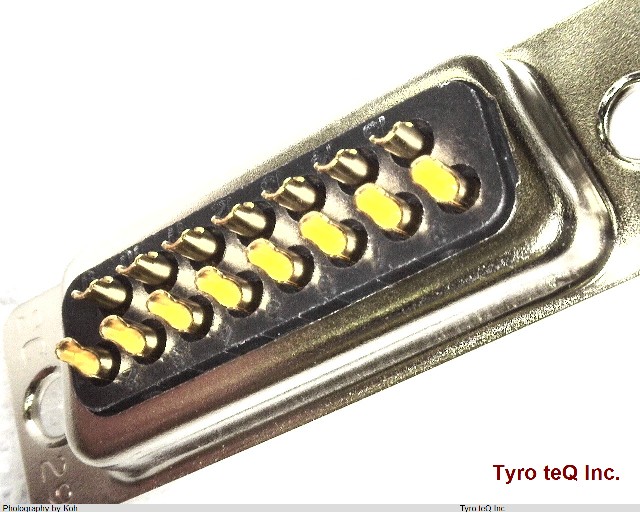

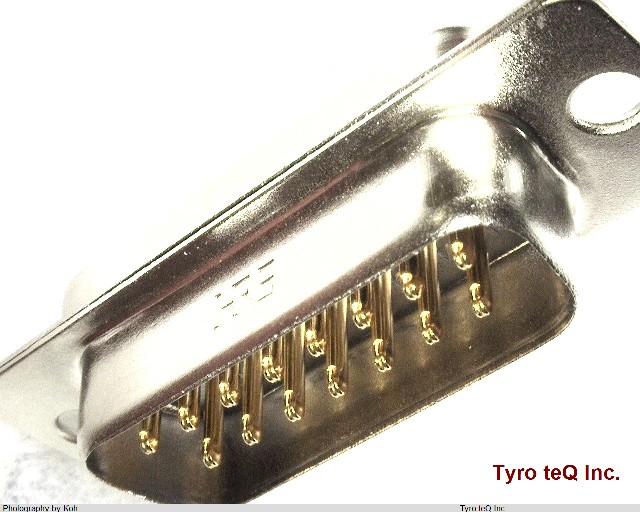

Name: HDAB-15P(05)
Brand: HIROSE
SKU: 400014043-0000-0000-0000

HDAB-15P(05) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

HDAB-15P(05) の詳細情報

型番	HDAB-15P(05)
メーカー	HIROSE
データシート
Body Breadth	0.494 inch
Body Depth	0.297 inch
Body Length	1.541 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	NOT APPLICABLE
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	7 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1700VAC V
Insulation Resistance	5000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mounting Option 1	LOCKING
Mounting Type	PANEL
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	3 A
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Termination Type	SOLDER LUG
Total Number of Contacts	15
