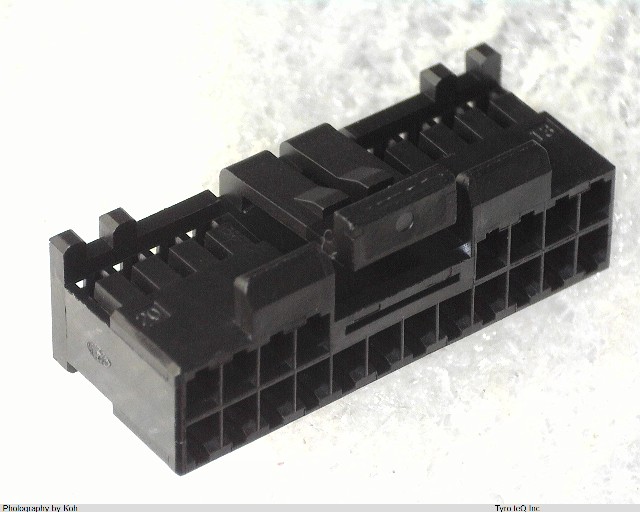

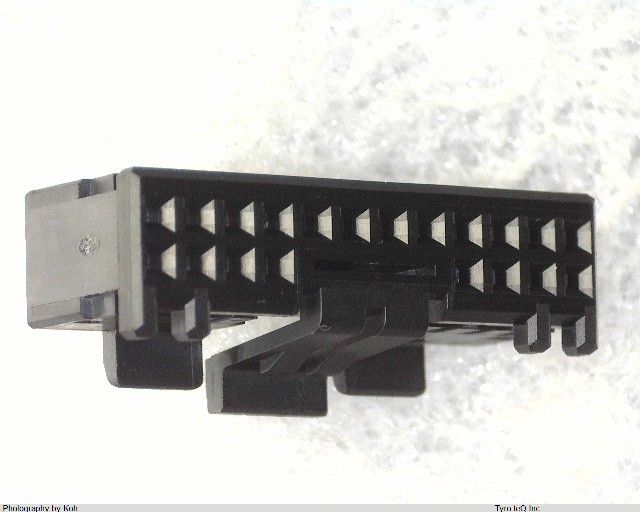

GT8E-20DS-HU データシート

Name: GT8E-20DS-HU
Brand: HIROSE
SKU: 170174326-0000-0000-0000

GT8E-20DS-HU - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

GT8E-20DS-HU の詳細情報

型番	GT8E-20DS-HU
メーカー	HIROSE
データシート
Body Breadth	0.293 inch
Body Depth	0.394 inch
Body Length	0.969 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	910VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
MIL Conformance	NO
Manufacturer Series	GT8E
Mating Contact Pitch	0.079 inch
Mixed Contacts	NO
Mounting Option 1	LATCH
Mounting Option 2	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	20
UL Flammability Code	94V-0
