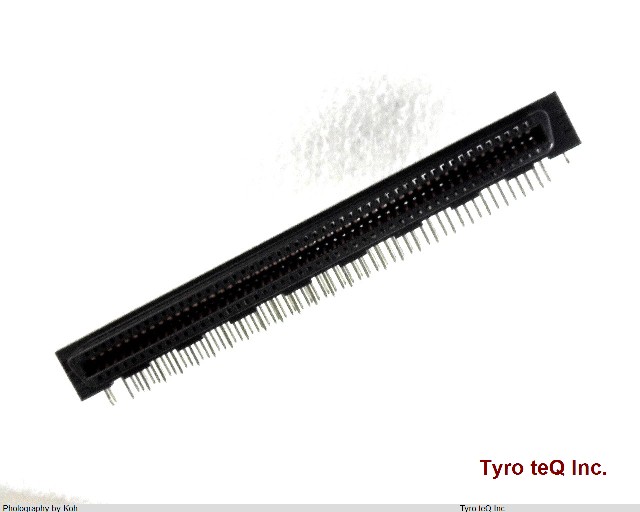

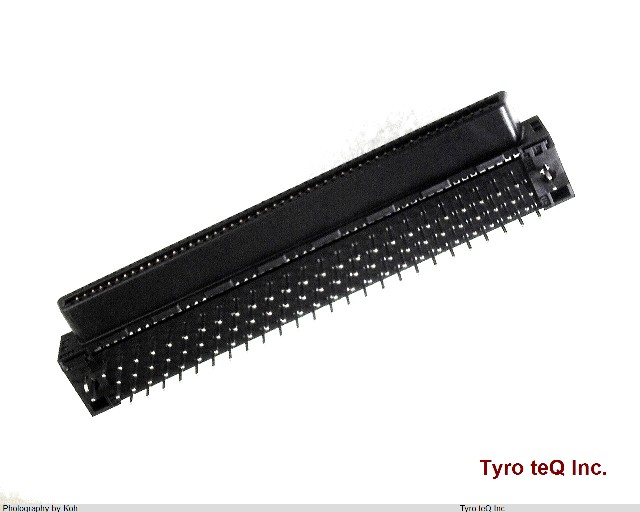

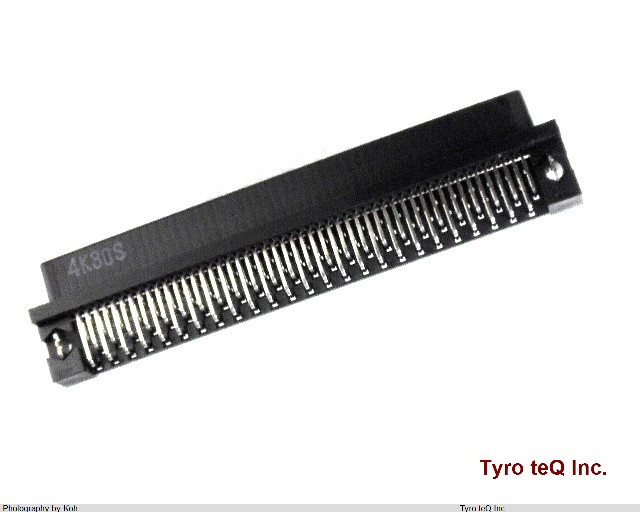

FX2100S1.27DSL データシート

Name: FX2100S1.27DSL
Brand: HIROSE
SKU: 160062750-0000-0000-0000

FX2100S1.27DSL - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FX2100S1.27DSL の詳細情報

型番	FX2100S1.27DSL
メーカー	HIROSE
データシート
Additional Feature	POLARIZED, STAGGERED CONFIGURATION
Body Breadth	0.295 inch
Body Depth	0.394 inch
Body Length	2.896 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	GOLD
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	BRASS/PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	45 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	300VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	FX2
Mating Contact Pitch	0.05 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	4
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	D Type Connectors
Terminal Length	0.13 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	100
UL Flammability Code	94V-0
