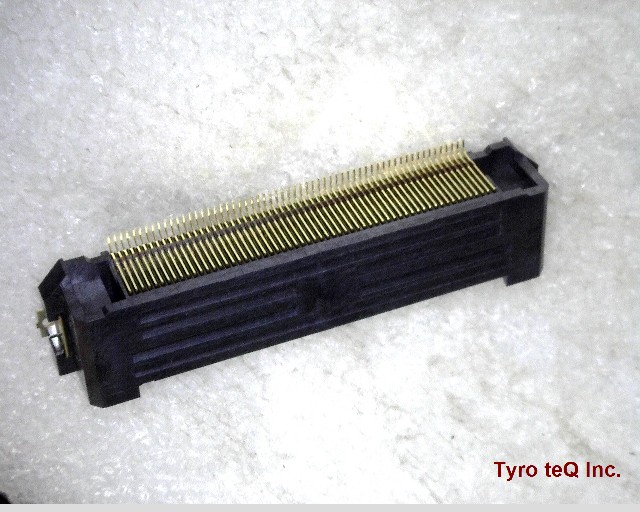

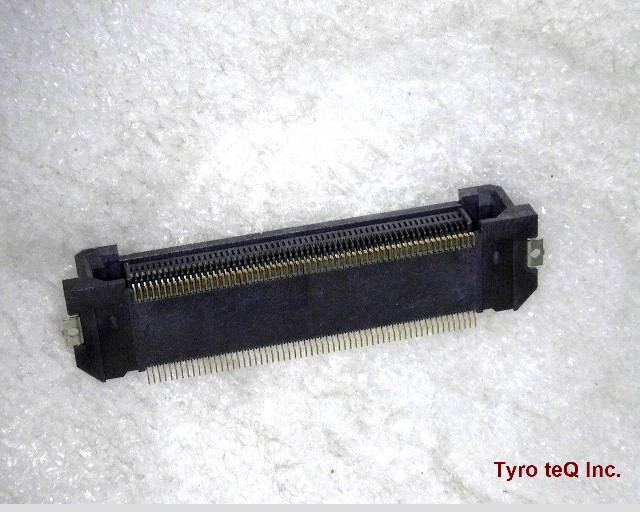

FX20-120S-0.5SH

Name: FX20-120S-0.5SH
Brand: HIROSE
SKU: 400068771-0000-0000-0000

FX20-120S-0.5SH - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FX20-120S-0.5SH の詳細情報

型番	FX20-120S-0.5SH
メーカー	HIROSE
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
Durability	50 Cycles
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
JESD-609 Code	e4
Mating Contact Pitch	0.02 inch
Mating Contact Row Spacing	0.106 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	5.1562 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.4826 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	120
