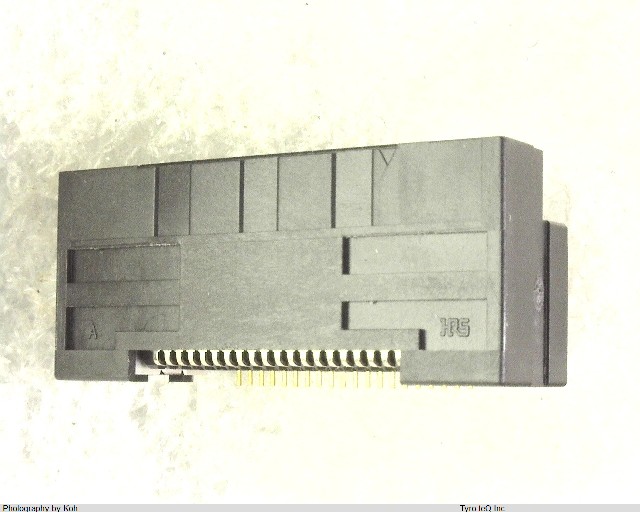

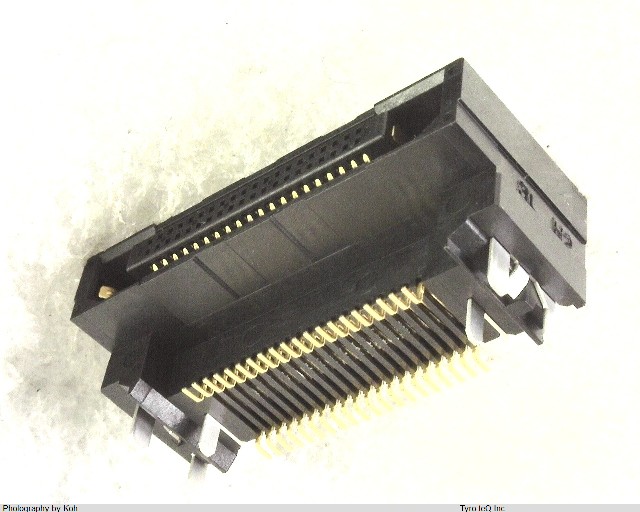

FX18-40S-0.8SH(11)

Name: FX18-40S-0.8SH(11)
Brand: HIROSE
SKU: 400069869-0000-0000-0000

FX18-40S-0.8SH(11) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FX18-40S-0.8SH(11) の詳細情報

型番	FX18-40S-0.8SH(11)
メーカー	HIROSE
Body Breadth	0.374 inch
Body Depth	0.331 inch
Body Length	1.098 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Arrangement	S40P4
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	GOLD
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	90 mohm
Contact Style	HYBRID
Dielectric Withstanding Voltage	300VAC V
Durability	500 Cycles
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e4
Mating Contact Pitch	0.031 inch
Mixed Contacts	YES
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	6.3 mm
Plating Thickness	4u inch
Rated Current (Power)	3 A
Rated Current (Signal)	0.5 A
Terminal Pitch	0.8 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	44
UL Flammability Code	94V-0
