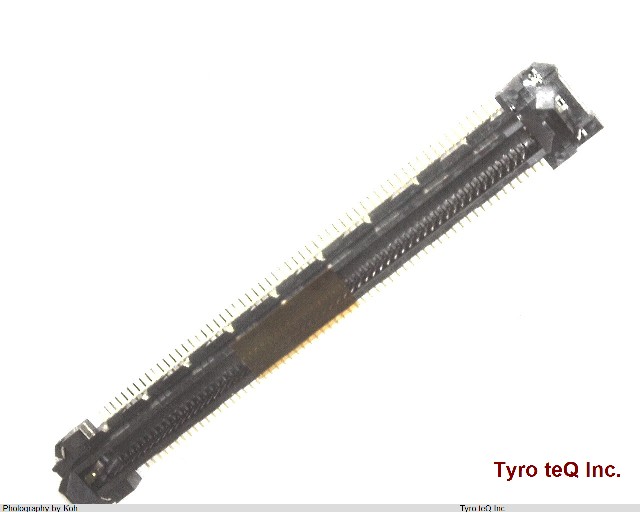

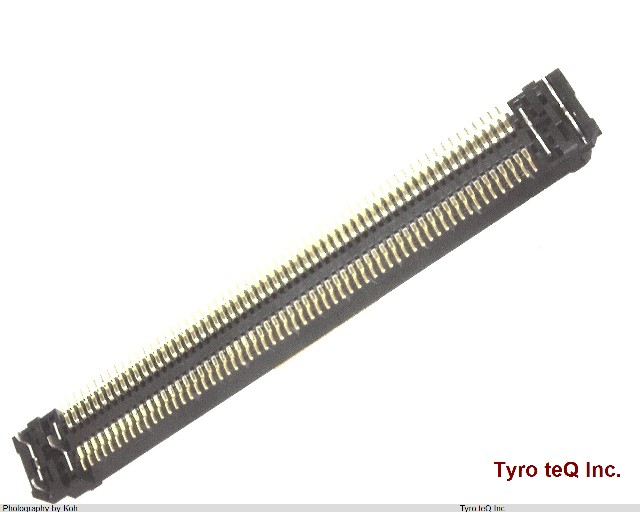

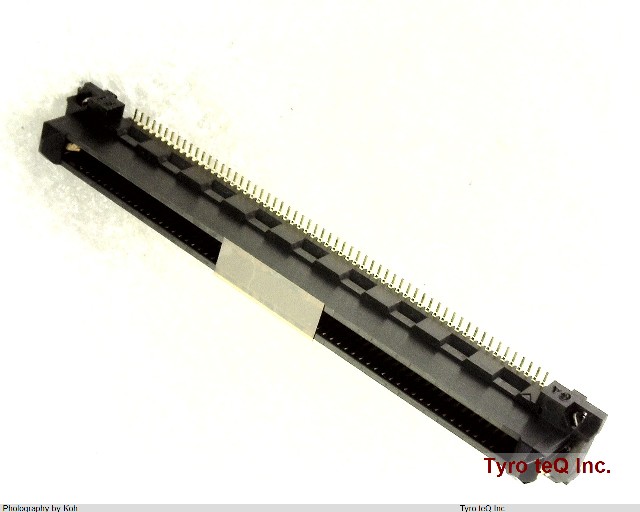

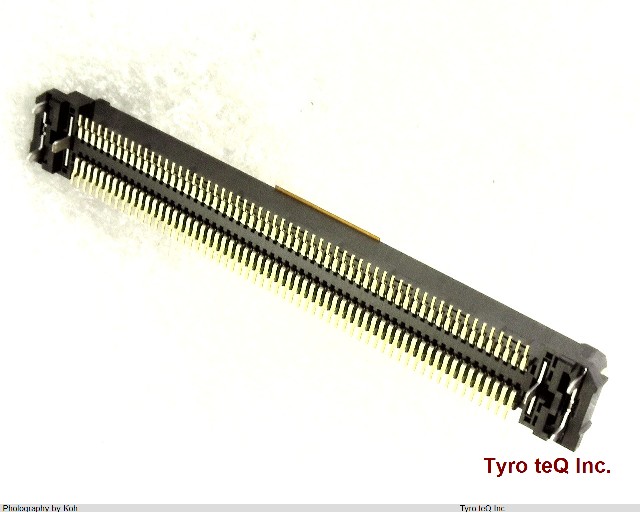

FX18-120P-0.8SV データシート

Name: FX18-120P-0.8SV
Brand: HIROSE
SKU: 160107668-0000-0000-0000

FX18-120P-0.8SV - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FX18-120P-0.8SV の詳細情報

型番	FX18-120P-0.8SV
メーカー	HIROSE
データシート
Board Mounting Option	LOCATING POSTS
Body Breadth	0.307 inch
Body Depth	0.341 inch
Body Length	2.358 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	90 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Durability	500 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.031 inch
Mating Information	FX18-120S-0.8SV15, FX18-120S-0.8SV20
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	6.2992 mm
Plating Thickness	3.93u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.8 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	120
UL Flammability Code	94V-0
