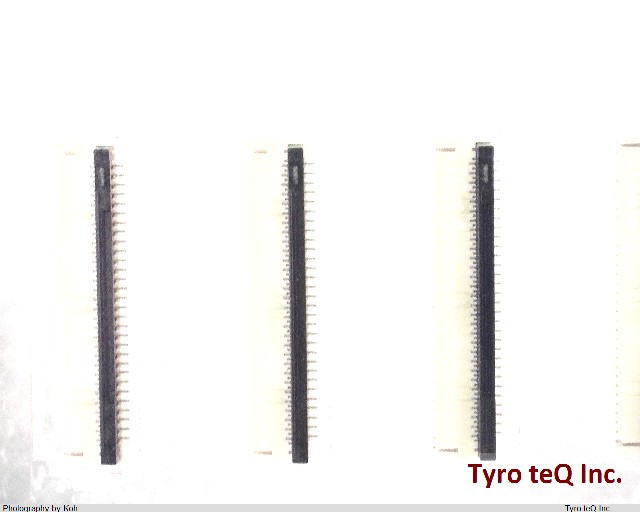

FH58A-61S-0.2SHW データシート

Name: FH58A-61S-0.2SHW
Brand: HIROSE
SKU: 160149892-0000-0000-0000

FH58A-61S-0.2SHW - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FH58A-61S-0.2SHW の詳細情報

型番	FH58A-61S-0.2SHW
メーカー	HIROSE
データシート
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	300 mohm
Contact Style	BELLOWED TYPE
Dielectric Withstanding Voltage	127VAC V
Durability	10 Cycles
Insulation Resistance	50000000 ohm
Mating Contact Pitch	0.008 inch
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.4892 mm
Rated Current (Signal)	0.2 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.4064 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	61
