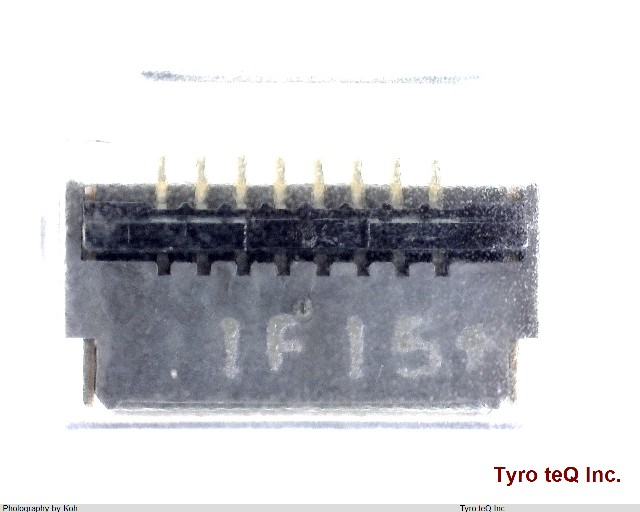

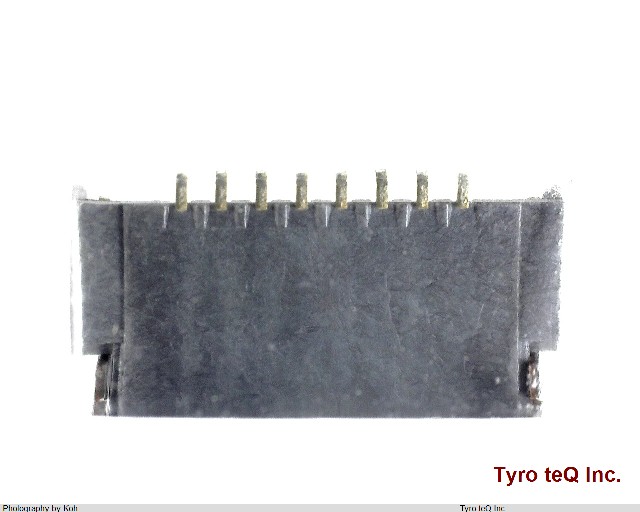

FH34SRJ-8S-0.5SH(99) データシート

Name: FH34SRJ-8S-0.5SH(99)
Brand: HIROSE
SKU: 400043810-0000-0000-0000

FH34SRJ-8S-0.5SH(99) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FH34SRJ-8S-0.5SH(99) の詳細情報

型番	FH34SRJ-8S-0.5SH(99)
メーカー	HIROSE
データシート
Board Mounting Option	SOLDER HOLDING POSTS
Body Breadth	0.039 inch
Body Depth	0.126 inch
Body Length	0.236 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	100 mohm
Contact Style	BELLOWED TYPE
Dielectric Withstanding Voltage	350VAC V
Durability	20 Cycles
Insertion Force-Max	ZIF N
Insulation Resistance	500000000 ohm
Mating Contact Pitch	0.020 inch
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.508 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	8
