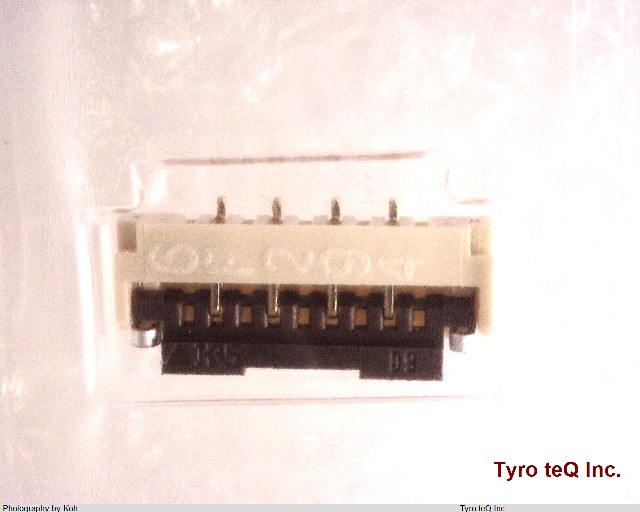

FH33-4S-1SH データシート

Name: FH33-4S-1SH
Brand: HIROSE
SKU: 160122052-0000-0000-0000

FH33-4S-1SH - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FH33-4S-1SH の詳細情報

型番	FH33-4S-1SH
メーカー	HIROSE
データシート
Additional Feature	ZIF, LOW PROFILE
Body Breadth	0.047 inch
Body Depth	0.098 inch
Body Length	0.256 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	AU
Contact Finish - Termination	GOLD FLASH
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	150VAC V
Durability	20 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	ZIF N
Insulation Resistance	500000000 ohm
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.039 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	FLASH inch
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.9906 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	4
UL Flammability Code	94V-0
