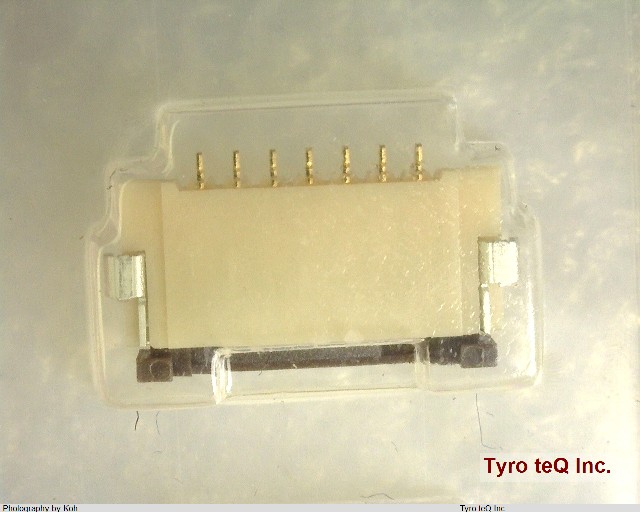

FH12-7S-1SH(55)

Name: FH12-7S-1SH(55)
Brand: HIROSE
SKU: 400057929-0000-0000-0000

FH12-7S-1SH(55) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FH12-7S-1SH(55) の詳細情報

型番	FH12-7S-1SH(55)
メーカー	HIROSE
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	50 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	150VAC V
Durability	20 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.039 inch
Mixed Contacts	NO
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
Plating Thickness	1.97u inch
Rated Current (Signal)	0.5 A
Reference Standard	UL
Terminal Pitch	1 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	7
UL Flammability Code	94V-0
