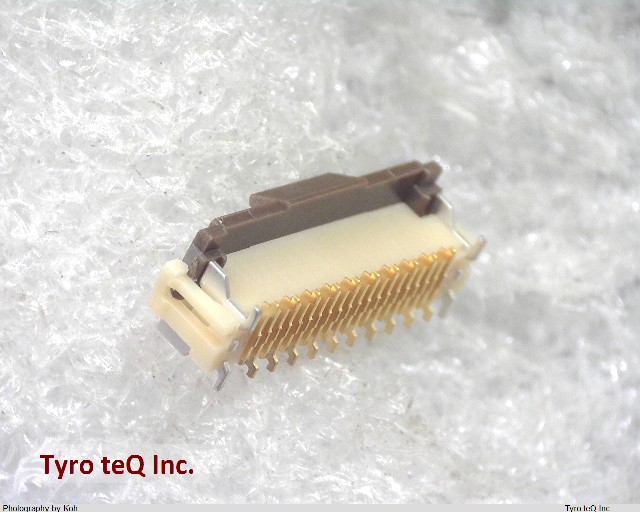

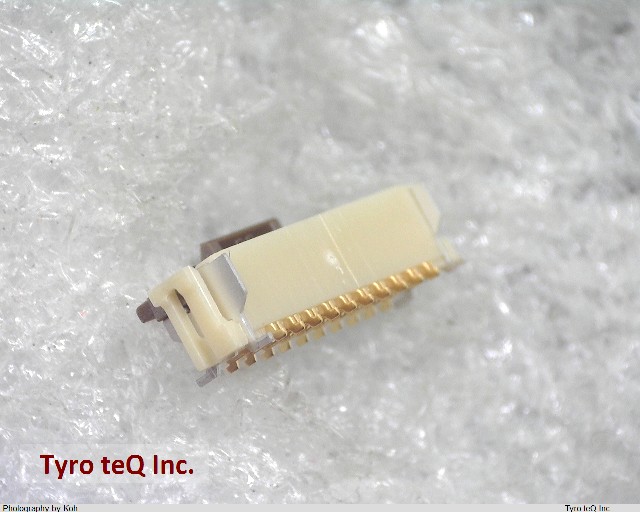

FH12-20S-0.5SV(55) データシート

Name: FH12-20S-0.5SV(55)
Brand: HIROSE
SKU: 160146992-0000-0000-0000

FH12-20S-0.5SV(55) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

金めっき

FH12-20S-0.5SV(55) の詳細情報

型番	FH12-20S-0.5SV(55)
メーカー	HIROSE
データシート
Additional Feature	ZIF
Body Breadth	0.098 inch
Body Depth	0.217 inch
Body Length	0.52 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	GOLD (8)
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	150VAC V
Durability	20 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	ZIF N
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.02 inch
Mixed Contacts	NO
Mounting Option 1	EJECT LEVER
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	0.4 A
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.5 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	20
UL Flammability Code	94V-0
Withdrawl Force-Min	ZIF N
