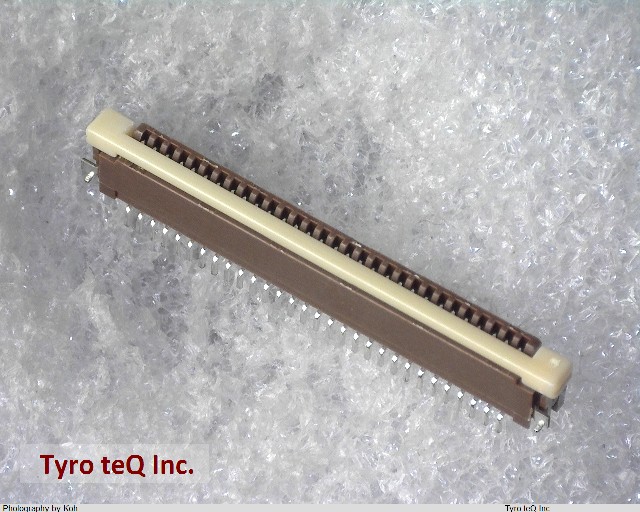

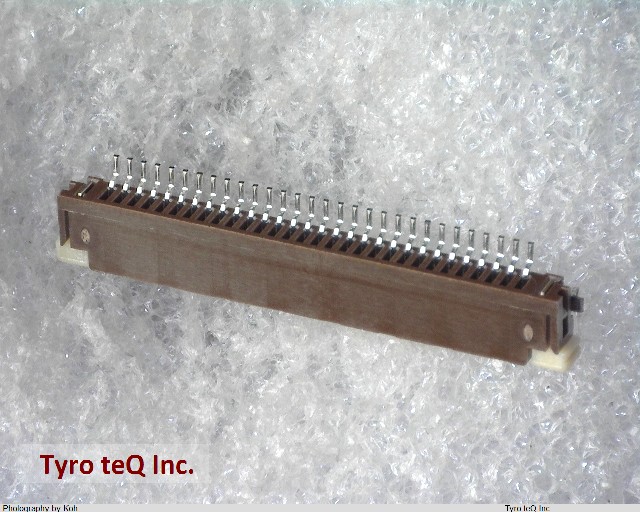

FH10A-30S-1SH データシート

Name: FH10A-30S-1SH
Brand: HIROSE
SKU: 160041948-0000-0000-0000

FH10A-30S-1SH - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FH10A-30S-1SH の詳細情報

型番	FH10A-30S-1SH
メーカー	HIROSE
データシート
Additional Feature	EMBOSSED TAPE PACKAGING
Board Mounting Option	PEG
Body Breadth	0.118 inch
Body Depth	0.26 inch
Body Length	1.425 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	SN-PB
Contact Finish - Termination	TIN LEAD
Contact Gender	MALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	25 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	30 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	ZIF N
Insulation Resistance	500000000 ohm
Insulator Color	NATURAL
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e0
MIL Conformance	NO
Mating Contact Pitch	0.039 inch
Mating Information	RIBBON CABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING MECH
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0 inch
Terminal Pitch	.9906 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	30
UL Flammability Code	94V-0
Withdrawl Force-Min	ZIF N
