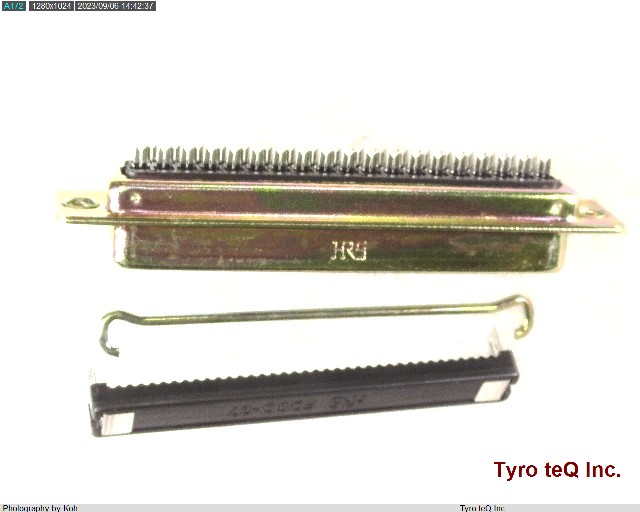

FDCD-37P

Name: FDCD-37P
Brand: HIROSE
SKU: 400066711-0000-0000-0000

FDCD-37P - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FDCD-37P の詳細情報

型番	FDCD-37P
メーカー	HIROSE
Additional Feature	PANEL MOUNTABLE
Body Breadth	0.494 inch
Body Depth	0.512 inch
Body Length	2.729 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	BERYLLIUM COPPER
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	650VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	FD
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	HOLE .112-.124
Mounting Type	CABLE AND PANEL
Number of Rows Loaded	2
Option	WITH CABLE ASSEMBLY
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	DICHROMATE
Shell Material	STEEL
Shell Size	4/C
Sub Category	D Type Connectors
Terminal Length	0 inch
Termination Type	IDC
Total Number of Contacts	37
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
