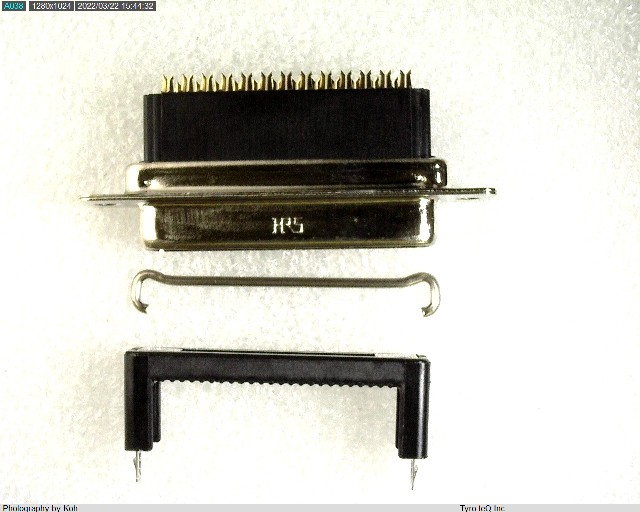

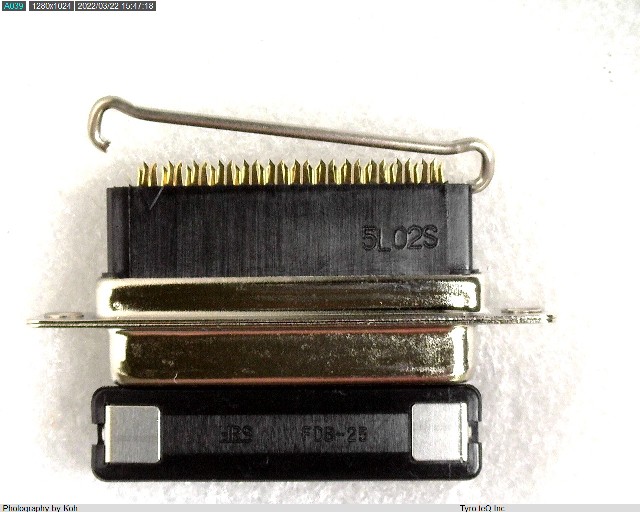

FDB-25S(05) データシート

Name: FDB-25S(05)
Brand: HIROSE
SKU: 160141618-0000-0000-0000

FDB-25S(05) - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

シェルニッケルめっき品

FDB-25S(05) の詳細情報

型番	FDB-25S(05)
メーカー	HIROSE
データシート
Additional Feature	PANEL MOUNT
Body Breadth	0.494 inch
Body Depth	0.716 inch
Body Length	2.088 inch
Body/Shell Style	SOCKET
Connector Type	D SUBMINIATURE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	910VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Termination Type	IDC
Total Number of Contacts	25
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
