FDB-25P データシート

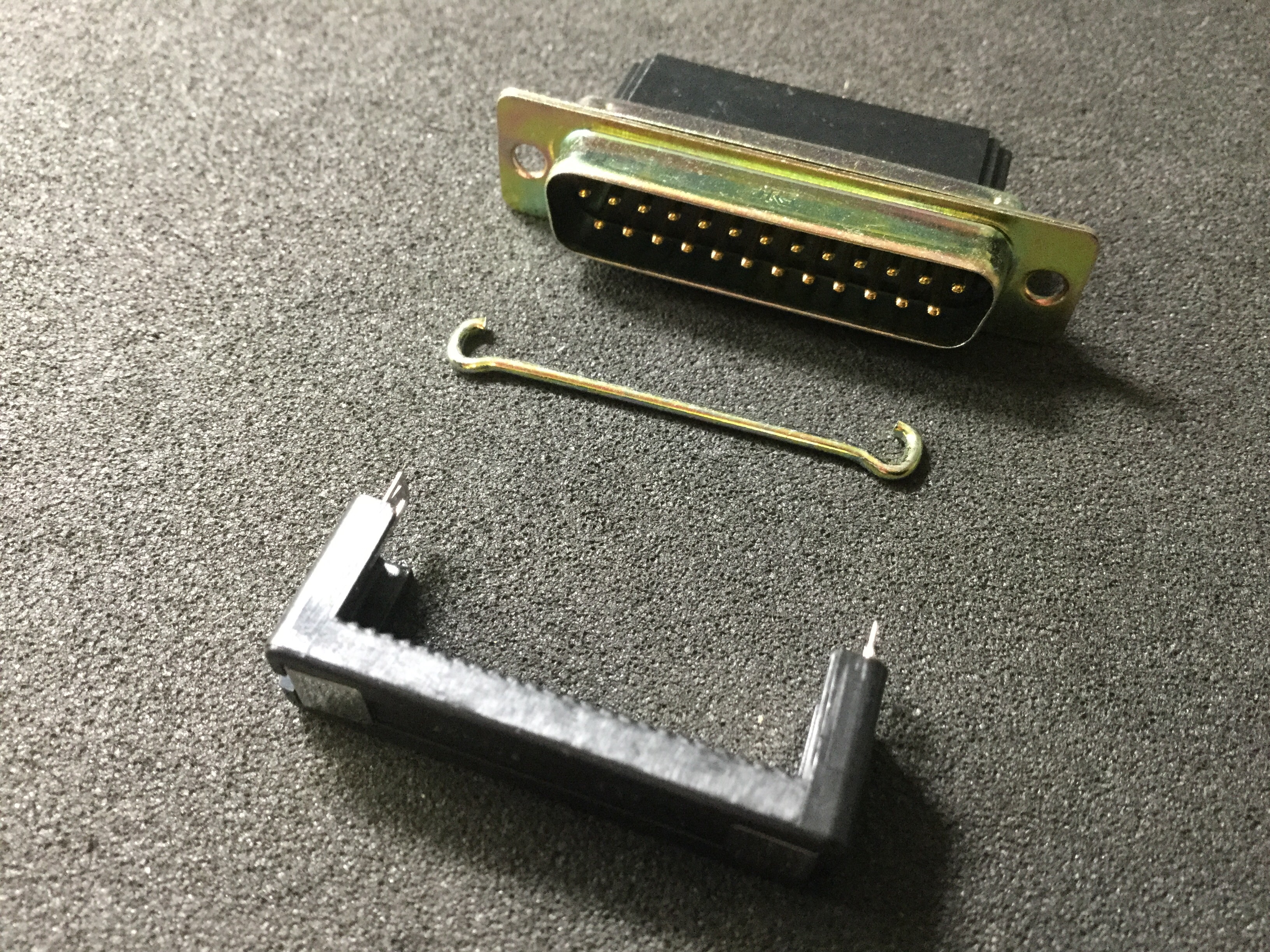

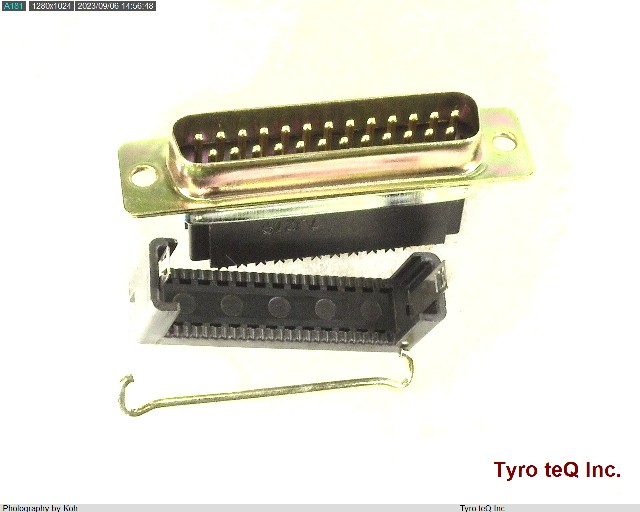

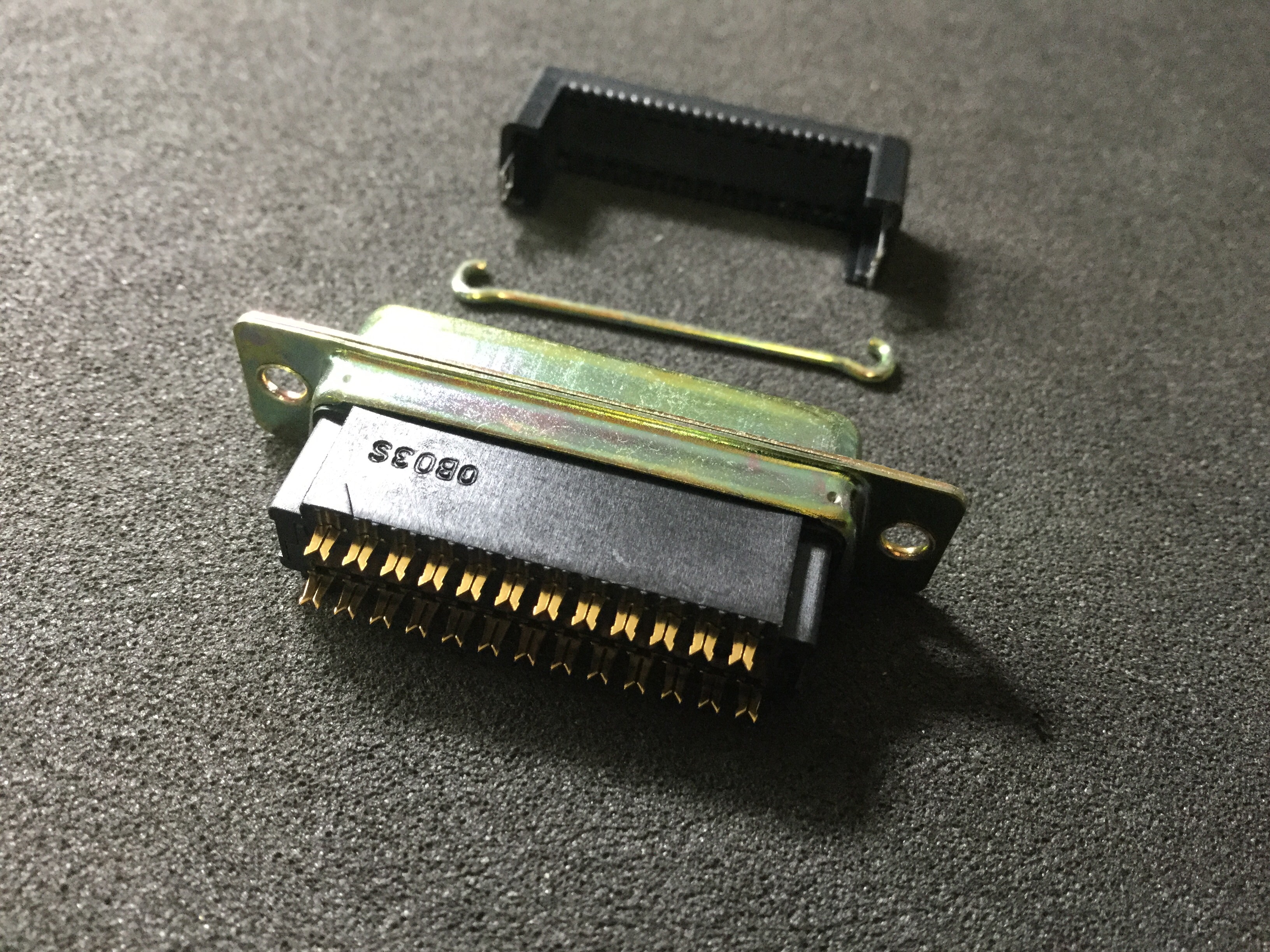

Name: FDB-25P
Brand: HIROSE
SKU: 160063302-0000-0000-0000

FDB-25P - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FDB-25P の詳細情報

型番	FDB-25P
メーカー	HIROSE
データシート
Additional Feature	PANEL MOUNTABLE
Body Breadth	0.494 inch
Body Depth	0.607 inch
Body Length	2.088 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	200VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	83 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	FD
Mating Contact Pitch	0.108 inch
Mating Information	MULTILE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	DICHROMATE
Shell Material	STEEL
Shell Size	3/B
Sub Category	D Type Connectors
Termination Type	IDC
Total Number of Contacts	25
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
Withdrawl Force-Min	83 N
