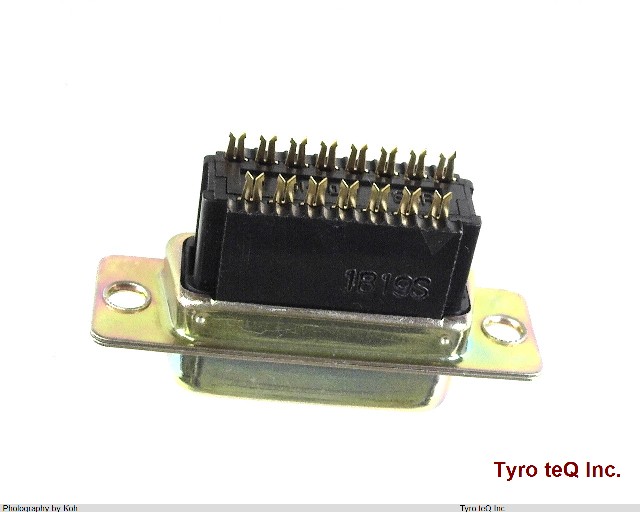

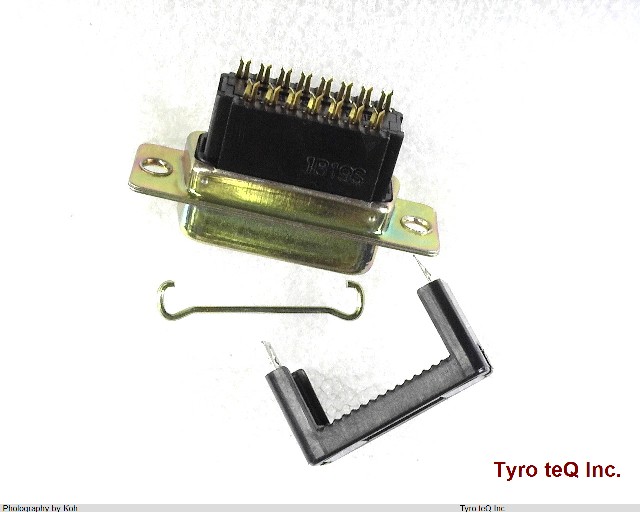

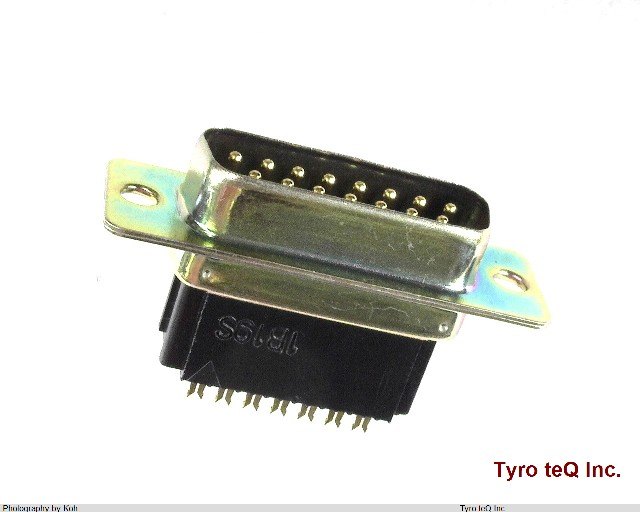

FDA-15P

Name: FDA-15P
Brand: HIROSE
SKU: 400051455-0000-0000-0000

FDA-15P - HIROSE の商品詳細ページです。

２営業日以内に回答いたします

FDA-15P の詳細情報

型番	FDA-15P
メーカー	HIROSE
Additional Feature	PANEL MOUNTABLE
Body Breadth	0.494 inch
Body Depth	0.607 inch
Body Length	1.539 inch
Body/Shell Style	PLUG
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	GOLD
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	STAGGERED
Contact Resistance	25 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	200VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	50 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Manufacturer Series	FD
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.112 inch
Mating Information	MULTILE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Option 2	HOLE .112-.124
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	DICHROMATE
Shell Material	STEEL
Shell Size	1/E
Sub Category	D Type Connectors
Termination Type	IDC
Total Number of Contacts	15
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
Withdrawl Force-Min	50 N
